Fountek FW135H

Categories: 2-6 inch Midrange Speaker Drive Units Fountek Drive Units - All

Fountek FW135H Midwoofer

Name: Fountek FW135H Midwoofer
Brand: Willys-Hifi Ltd
SKU: Fountek FW135H
Price: 37.04 GBP
Availability: InStock

£37.04

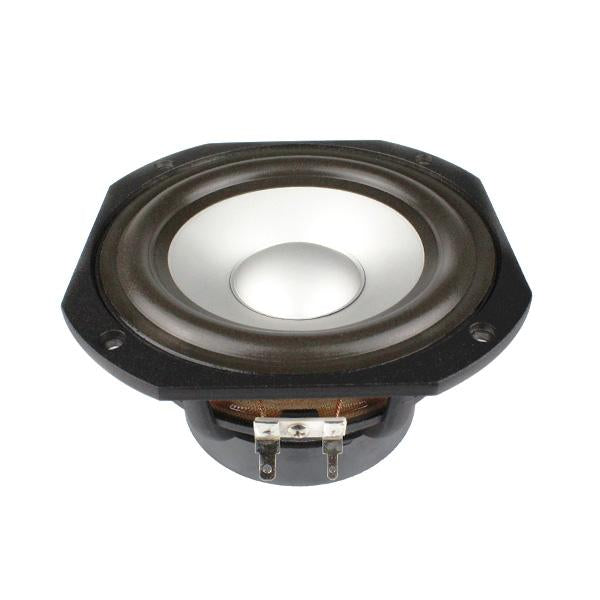

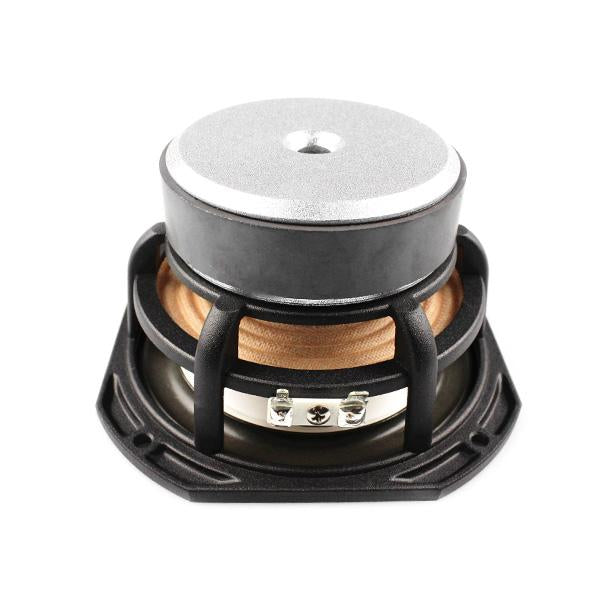

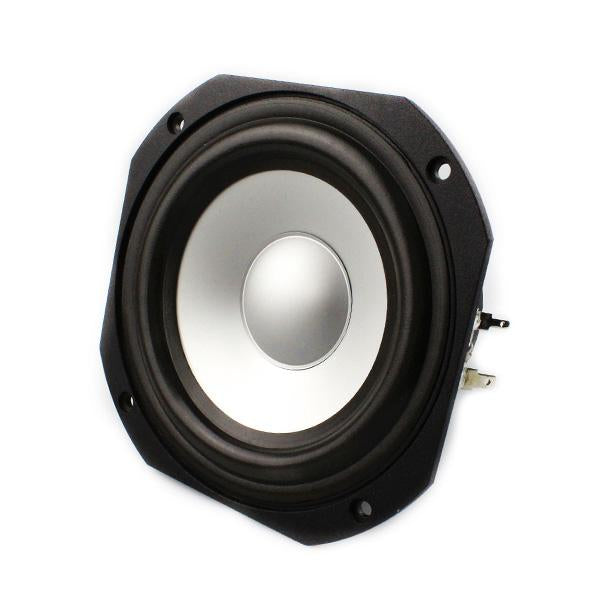

The Fountek FW135H is a long throw 5¼" / 135mm midwoofer featuring an aluminium cone, a fully ventilated diecast basket and a high temperature copper voice coil. This enhanced design has a broad usable bandwidth with minimal compression and low distortion. Can also be used as a dedicated midrange drive unit.

Key Features:

Aluminium cone - excellent transients
Fully ventilated diecast chassis
36mm copper voice coil
High compliance rubber suspension
Aluminium voice coil former
Long throw design - wide response
Low distortion

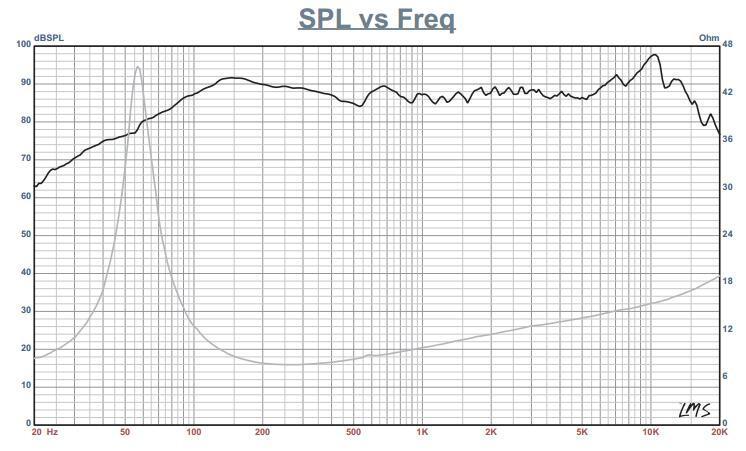

Basic parameters:

Resonant frequency (fs)	59.1 Hz	Nominal impedance (Zn)	8 Ω
Mechanical Q factor (Qms)	1.94	DC resistance (Re)	6.8 Ω
Electrical Q factor (Qes)	0.60	RMS power handling	30 W
Total Q factor (Qts)	0.46	Sensitivity (2.83V/1m)	85.6dB

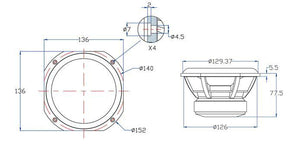

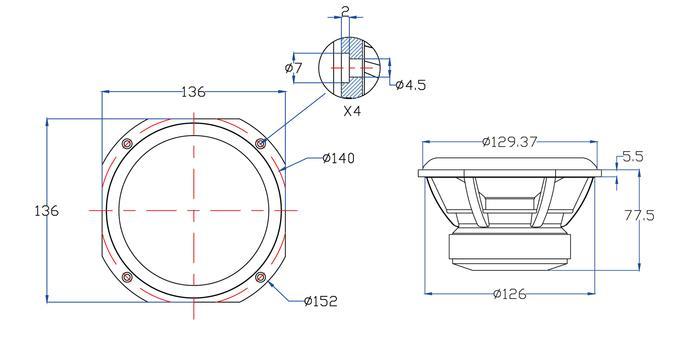

Equivalent volume (Vas)	6.91L	Chassis diameter (cropped)	152 mm

Fountek FW135H Midwoofer

Key Features:

Basic parameters:
