DRIVE UNITS BY MANUFACTURER:
FFAPG O87
APG O87, an ester based fluid with a saturation of 250 Gauss and a viscosity of 750 centipoise. Manufactured by Ferrotec USA .
Other available formulations, contact us for details:
CDF 2250 (Ester based): 220 Gauss, 500 cP
APG 1134 (Hydrocarbon): 220 Gauss, 1000 cP
There is over 100 grades of ferrofluid; the above are the most common specific fluids used by major drive unit manufacturers
Beware: some unscrupulous sellers are offering the cheap, commonly available science project type ferrofluid as an audio product. This results in an unpredictable / overdamped output and can soften drive unit adhesive - always double check the origin and the specification.

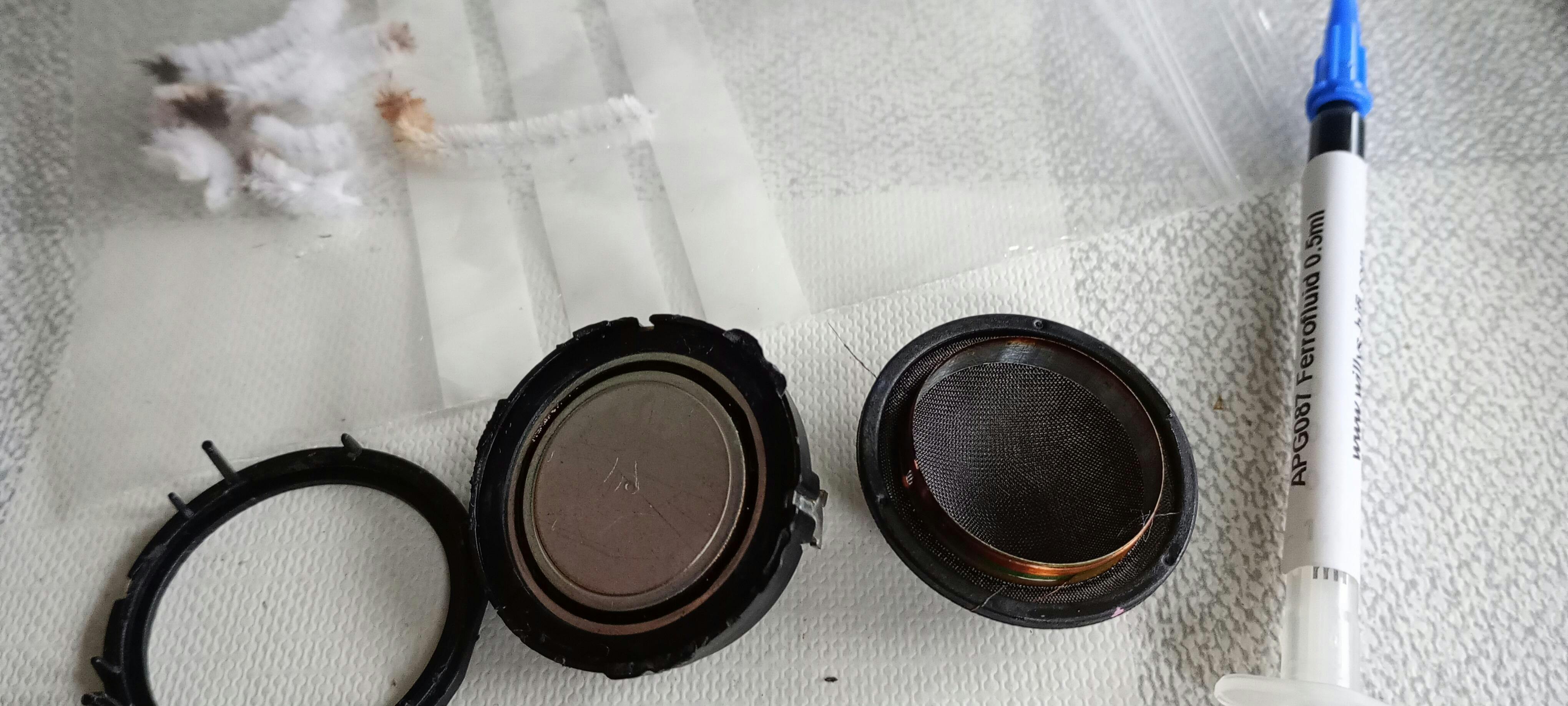

Ferrofluid is a cooling / damping compound used in the magnetic gap of many tweeters to increase power handling and smooth out the frequency response; it has a tendency to thicken with age, gradually reducing tweeter output to zero. Many old tweeters from the 1980s/90s can be restored to perfect working order by carefully dismantling and cleaning out the old coagulated fluid then replacing with fresh.
This refill kit comprises a high accuracy syringe pre-filled with Ferrofluid specifically formulated for high fidelity tweeter application. There is sufficient in the syringe for 2 tweeters & a micro applicator nozzle is supplied.
Willys-Hifi Ltd, the UK speaker specialist.
Helpline 01702 523999
Very easy to do on this model speaker as no soldering is required. Made a noticeable improvement. Well worth the effort and cost.
Has fixed the slight grainy sound on my old Mission 771s. The tweeter had a stain on the back suggesting the fluid had escaped. Make sure you release(unsolder) the coil wires before splitting the tweeter. Audax have replacement tweeters TM025C1 albeit 8 ohm which is another way to go.
Thanks for the review John!
Will & Caroline

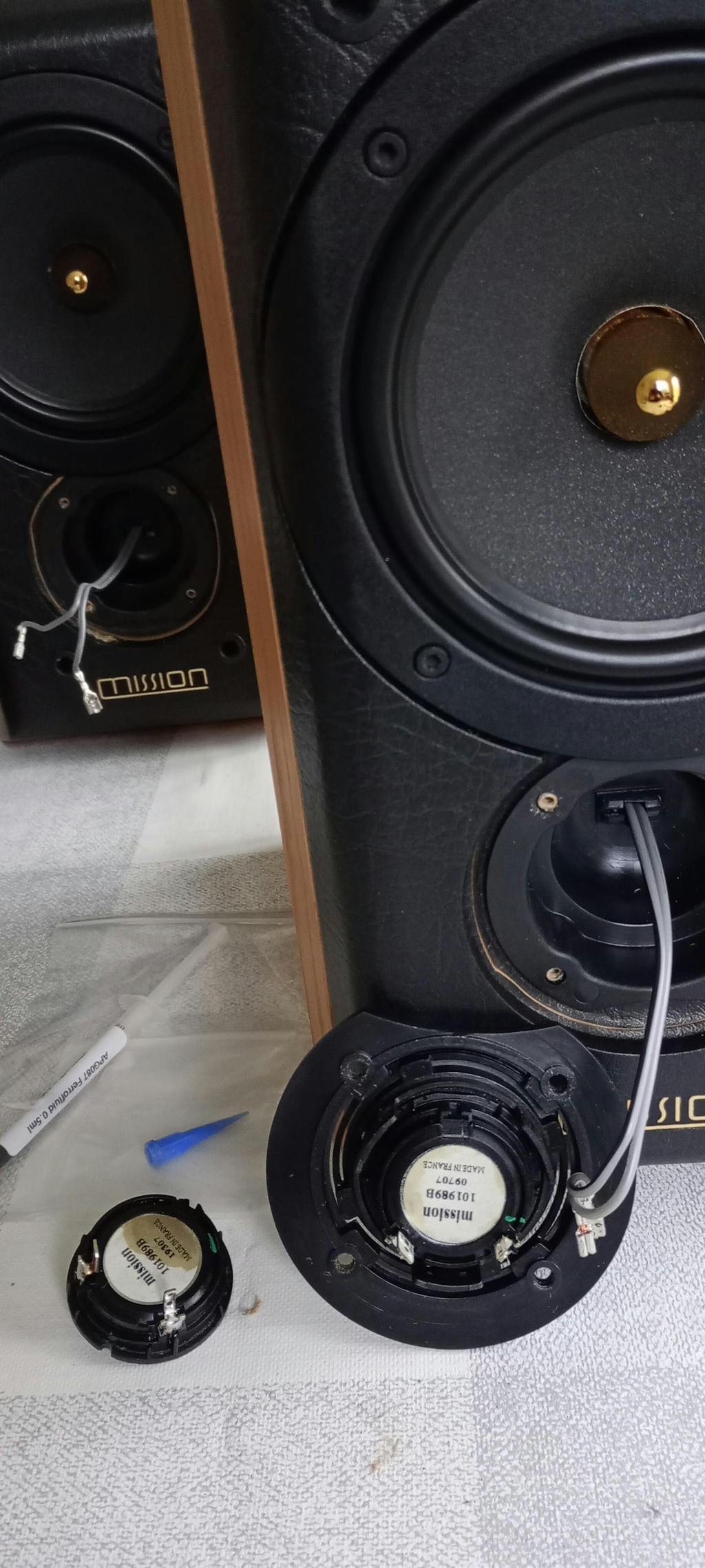

Delivered quickly. 0.5ml is more than enough for two tweeters and the syringe is essential in order not to over-fill the gap. Well worth it - this has brought a pair of Mission 752 Freedoms back to life.
