SPH-210

Monacor SPH-210 Bass / Mid speaker

Monacor SPH-210. Good replacement for Mission 700, 737R and many others.

IN UK STOCK NOW.

This 8 inch / 210mm drive unit is ideal as a high quality general replacement for 2 or 3 way systems. Features include a damped polypropylene cone, a powerful 120mm ferrite magnet system, a rigid steel chassis and a vented pole piece. The frequency response is smooth with good midrange control and extension. Excellent results are possible with well designed bass reflex systems.

Key Features:

  • Damped polypropylene cone
  • Aluminium voicecoil former
  • Rigid steel basket
  • Large 120mm ferrite magnet
  • Extension down to 28 Hz
  • Vented pole piece

    Basic parameters:

    Resonant frequency (fs) 28 Hz Nominal impedance (Zn) 8 Ω
    Mechanical Q factor (Qms) 2.14 DC resistance (Re) 6.3 Ω
    Electrical Q factor (Qes) 0.27 Max power handling 100W
    Total Q factor (Qts) 0.24 Sensitivity (2.83V/1m) 90 dB
    Equivalent volume (Vas) 81L Chassis diameter 210 mm



    Here's the full datasheet:

    .pdf icon

    SPH210

    Customer Reviews

    Based on 5 reviews
    100%
    (5)
    0%
    (0)
    0%
    (0)
    0%
    (0)
    0%
    (0)
    o
    orlando fack
    perfect service

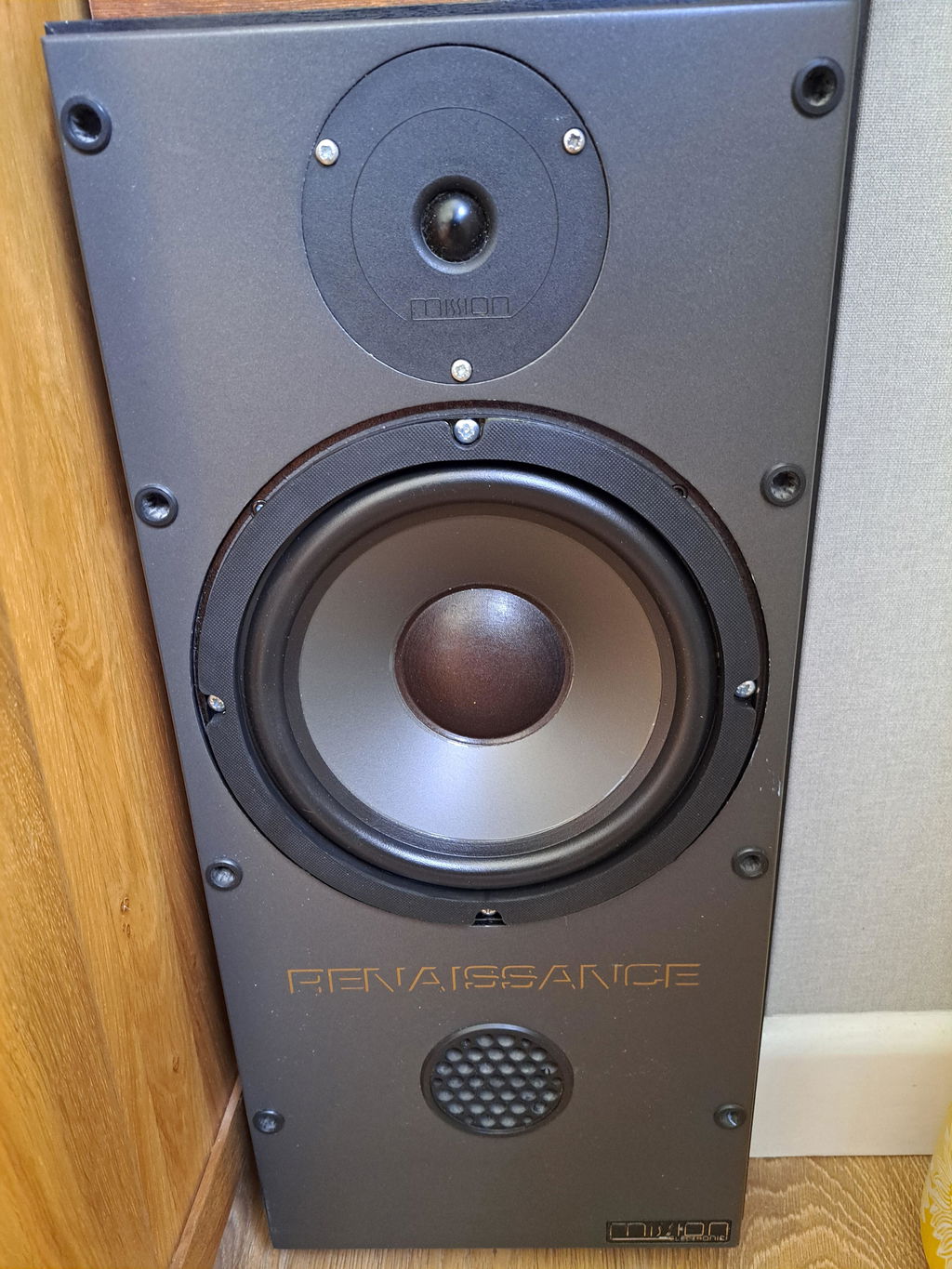

    Speaker was delivered super quickly and was the perfect upgrade in old my Mission 700s. Very happy

    Thanks for the review Orlando!
    Will & Caroline

    D
    Debbie Ellen
    thanks

    Not fitted yet but excellent speedy dispatch from Willys, thanks.

    Thanks for the review Debbie !
    Will & Caroline

    P
    Phil Larkin
    SPH-210 Upgrade

    Spoke to Willy's regarding replacements for my Mission 737R speakers. Advised these would be ideal with a little modification to my cabinets. They arrived next day and needed very little work to fit. Sounds superb!!
    Thanks Willy's l highly recommend your company.
    Phil

    Thanks for the review Phil !
    Will & Caroline

    K
    Kenneth McIntosh
    AR-6 Speaker Upgrade

    I used these two speakers to replace the woofers on my Accoustic Research AR-6 speakers. One of the AR-6 units had developed a fault so I purchased two to provide a matched set. The ordering process was very easy via the website and delivery was fast. The Monacor speakers were well packed and replacement was easy.
    I'm happy to report that they perform very well and my trusty AR-6 speakers sound as good as new.
    Many thanks to everyone at Willy's Hi-Fi.

    Thanks for the review Kenneth !

    Will & Caroline

    N
    Nigel Darling
    Better than the original!

    Hi Will,

    I just wanted to say how happy I am with the replacement mid/bass drivers that you supplied for a pair of Mission 700 speakers that I was refurbishing for a friend. Very well packaged, perfect fit, sound fantastic and cheaper than anywhere else!

    It is probably unfair to compare the original mission drive units to these replacements but the difference in build quality and sheer bulk of the new ones is impressive. They sound awesome!

    My mate is very impressed and so am I. The only downside is that I now miss the Mission 770s that I sold back in the 80s!

    Great service,
    Thanks so much,
    Nigel Darling.

    Thankyou for your review !
    Will & Caroline
