DC300-8
NEW PRODUCT - IN UK STOCK NOW.

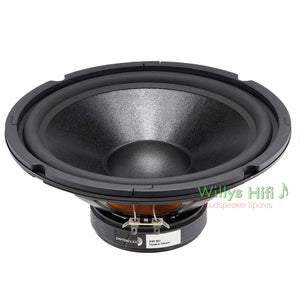

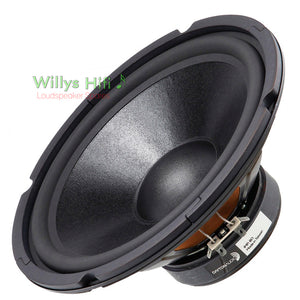

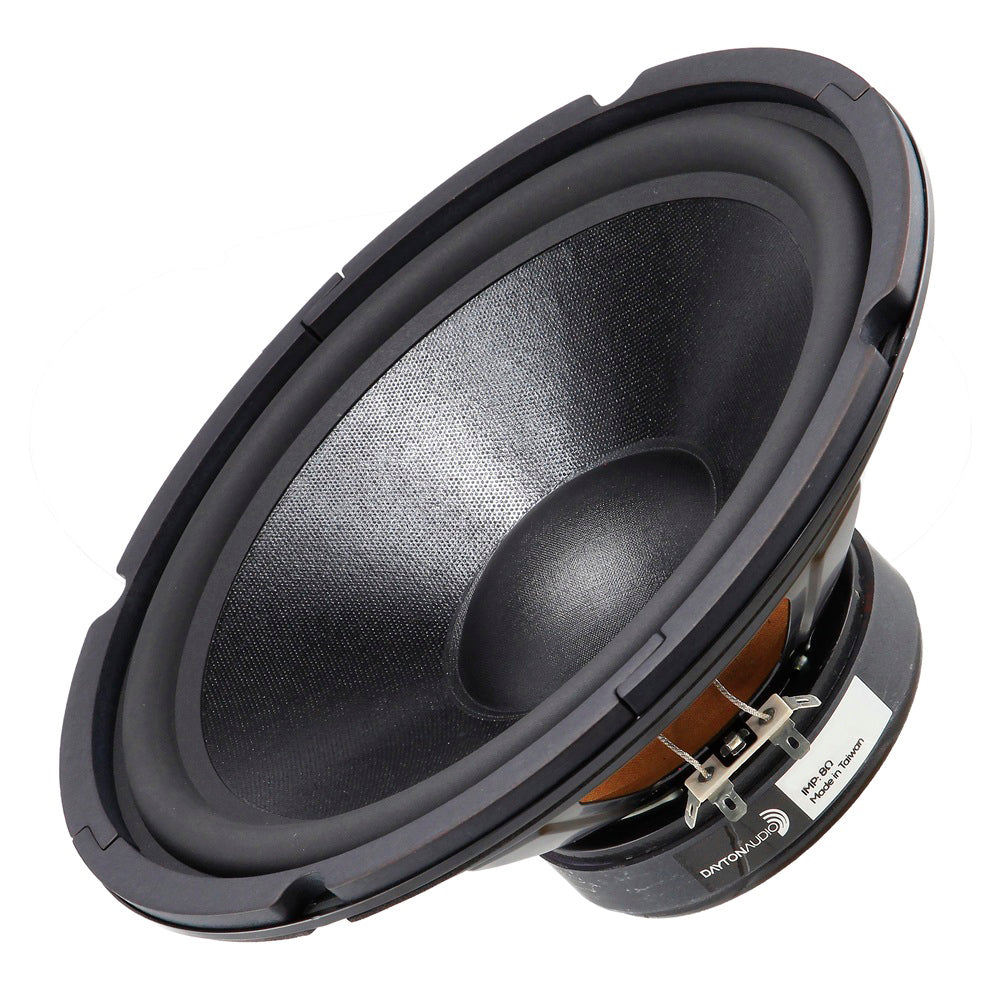

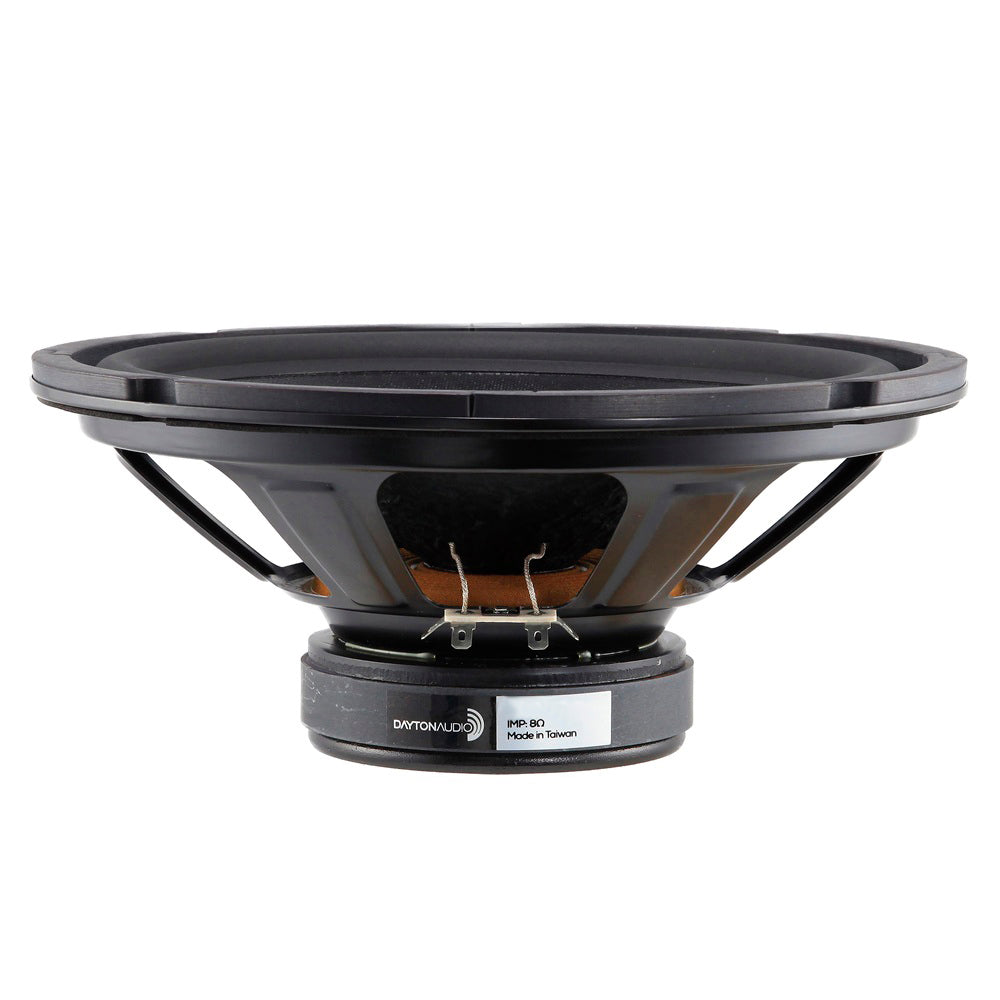

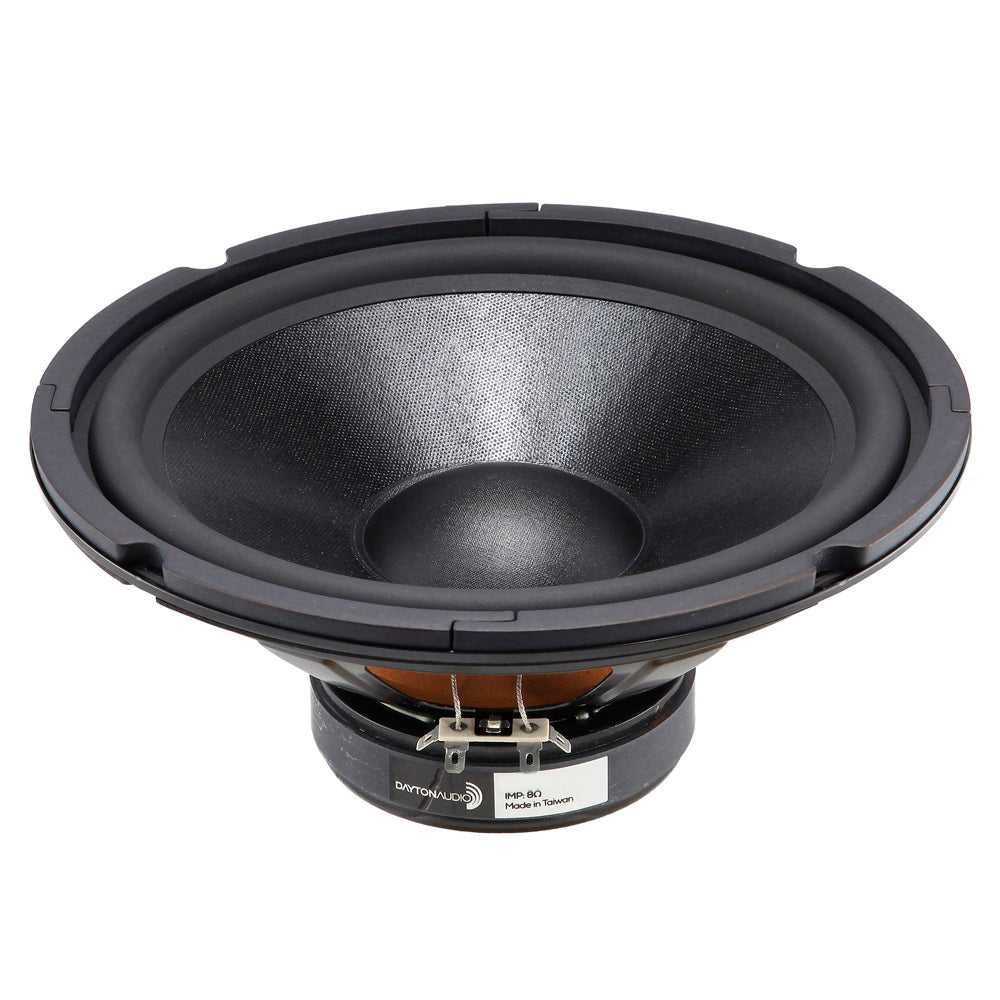

The Dayton Audio DC300-8 is a 12" 8 ohm woofer designed as a general replacement for larger traditional 3 way loudspeakers that feature a pulp or paper cone woofer as were popular in countless vintage designs from the 1970s / 80s. This unit has a great bass response and is an excellent cost effective way of reviving retro loudspeakers.
The Dayton Classic Series all offer an excellent price / performance ratio and are available in 5¼", 6½", 8", 10", 12" and 15" chassis sizes.
Designers can download FRD / ZMA files from the link at the bottom of the page.
| Resonant frequency (fs) | 22.9 Hz | Nominal impedance (Zn) | 8Ω |
| Mechanical Q factor (Qms) | 3.21 | DC resistance (Re) | 6.8 Ω |
| Electrical Q factor (Qes) | 0.37 | RMS power handling | 80W |
| Total Q factor (Qts) | 0.33 | Sensitivity (2.83V/1m) | 90.3dB |

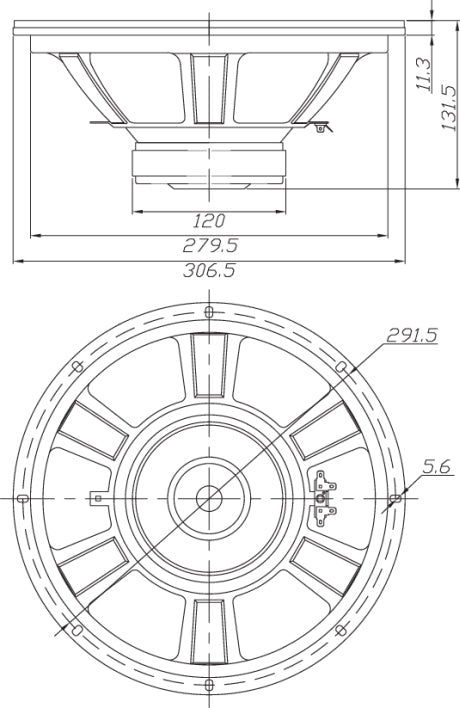

| Equivalent volume (Vas) | 181.5L | Chassis diameter | 306.5 mm |
