DC25T-8

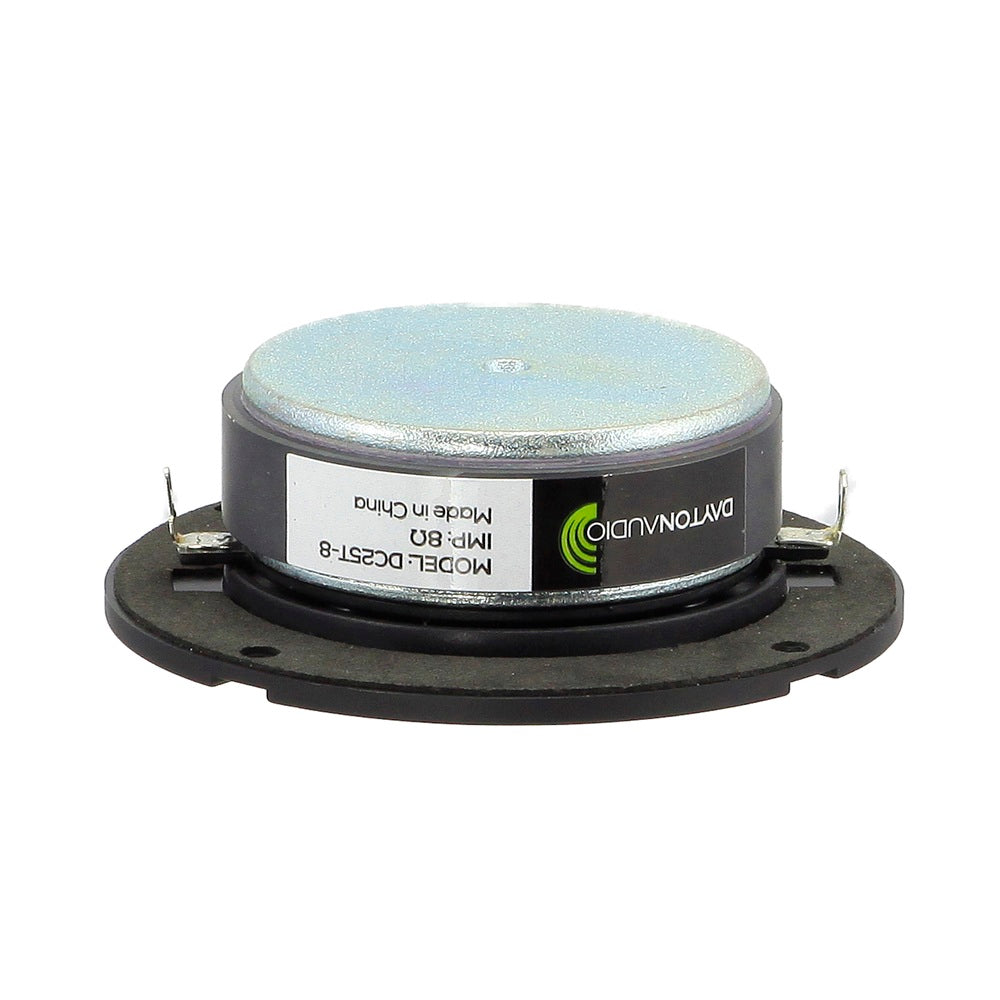

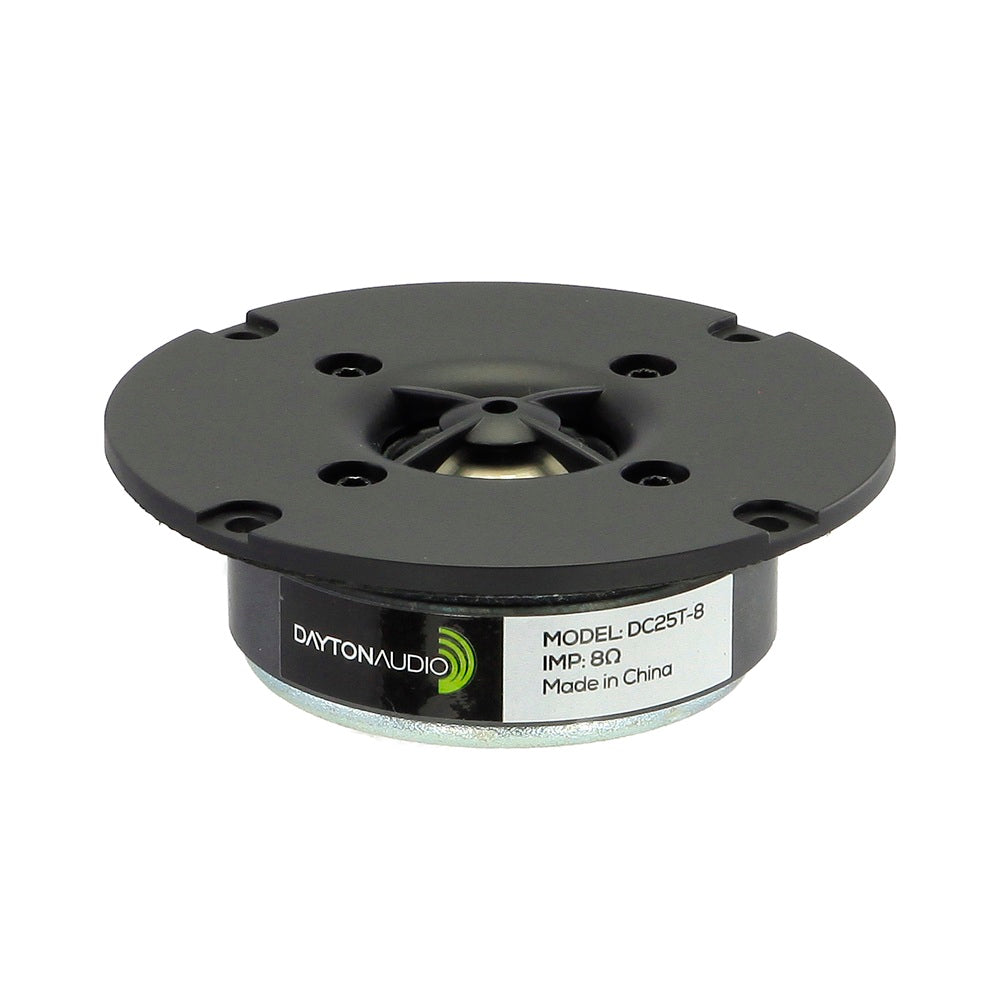

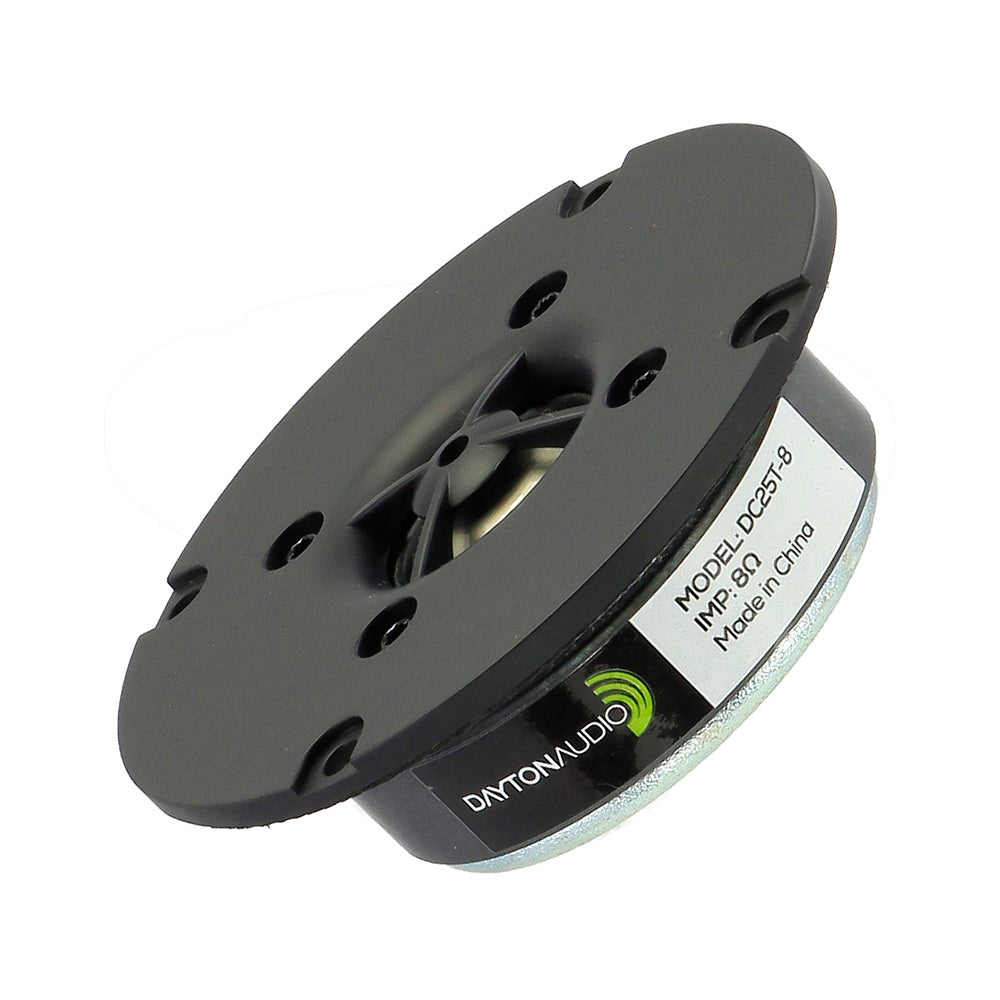

The Dayton Audio DC25T-8 is a 25mm dome tweeter featuring a hard titanium dome, a ferrofluid cooled aluminium voice coil assembly and a front phase waveguide. This Dayton Classic Series tweeter represents excellent value for money.
| Resonant frequency (fs) | 1468 Hz | Nominal impedance (Zn) | 8 Ω |
| Effective diaphragm diameter | 25mm |
DC resistance (Re) | 7.7 Ω |
| Ferrofluid ? Y/N | Yes | RMS power handling | 50 W |
| Recommended crossover | 3 kHz / 12dB | Faceplate diameter | 100 mm |
| Sensitivity (1W/1m) | 93dB | Cutout hole diameter | 74 mm |
