SB Acoustics Satori MT19CP-8 Coaxial Full Range Speaker

SB Acoustics Satori MT19CP-8 side view

SB Acoustics Satori MT19CP-8 back view

SB Acoustics Satori MT19CP-8 DRAWING

SB Acoustics Satori MT19CP-8 GRAPH

MT19CP-8

Categories: Full Range And Coaxial Drive Units SB Acoustics Full Range Drive Units

Type: Driver

SB Acoustics Satori MT19CP-8 Coaxial Full Range Speaker

£218.36

NEW PRODUCT: 7½" COAXIAL DRIVE UNIT.

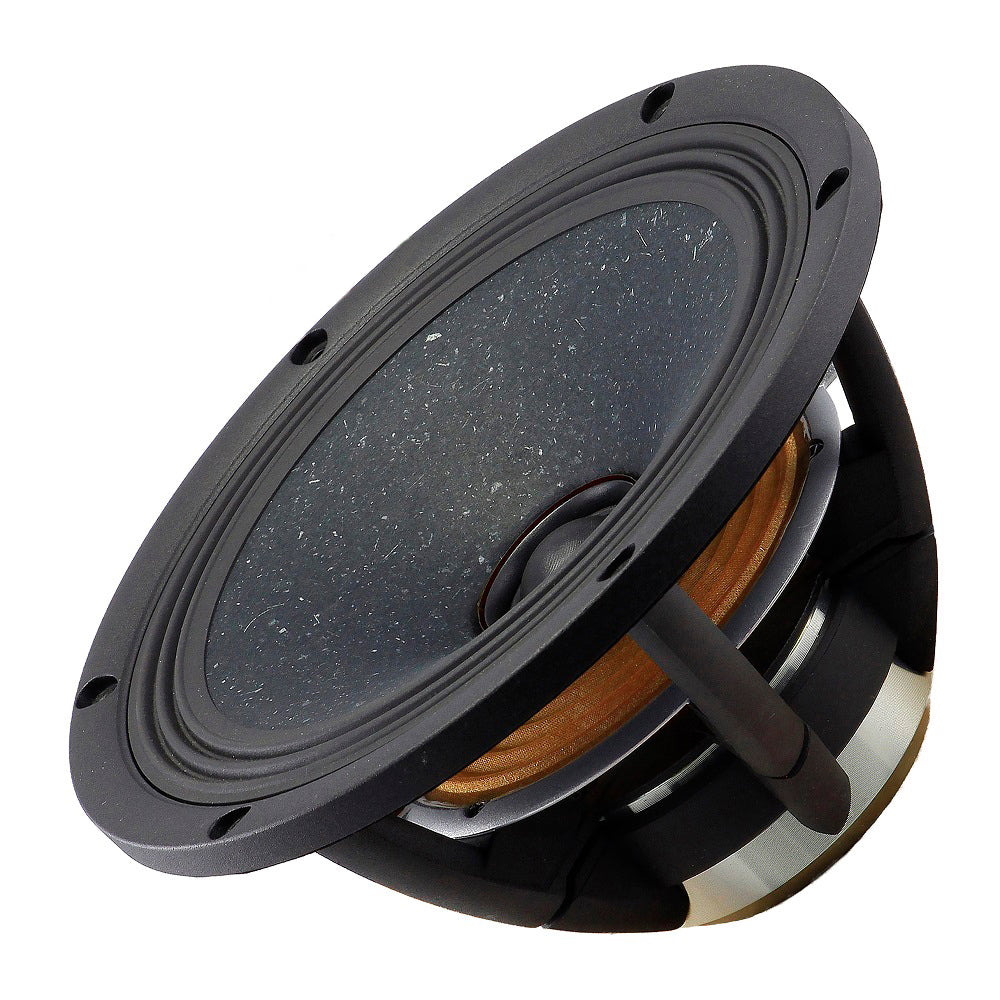

The Satori MT19CP-8 from SB Acoustics is a 2 way 7½ inch 8 ohm coaxial loudspeaker drive unit featuring a paper / Egyptian Papyrus blended cone, a soft dome tweeter, a high power neodymium magnet system and a high airflow diecast chassis.

A state of the art full range drive unit capable of exceptional results.

Key Features:

Proprietary cone material with EGYPTIAN PAPYRUS made in house.
Powerful low distortion neodymium motor system.
Extended copper sleeve (Faraday ring) on pole piece.
Low profile corrugated surround for minimum high frequency diffraction.
Light weight CCAW voice coil on fibre glass former.
Soft dome tweeter with neodymium motor, copper cap and CCAW voice coil.
Long life silver lead wires.

Basic parameters:

Resonant frequency (fs)	43 Hz	Nominal impedance (Zn)	8 Ω
Mechanical Q factor (Qms)	6.54	DC resistance (Re)	6.5 Ω
Electrical Q factor (Qes)	0.33	Max power handling	60 W
Total Q factor (Qts)	0.31	Sensitivity (2.83V/1m)	90dB
Equivalent volume (Vas)	37.1L	Chassis diameter	187mm

Here's the full datasheet:
