OC25SC65-04

Vifa Peerless OC25SC65-04 Tweeter

Notify me when this product is available:

Vifa / Peerless OC25SC65-04 25mm Dome Tweeter Capsule.

REPLACES VIFA 0C25SC05-04.


This tweeter features a 25 mm 4 ohm voice coil, a damped fabric dome giving a smooth frequency response and ferrofluid in the gap of the neodymium magnet for enhanced cooling of the voice coil. Twist-lock bayonet mounting for easy installation into custom faceplates / baffles. A full datasheet can be downloaded from the bottom of this page.

Excellent replacement for B&W P4, P5, P6, CDM1, Mission M7, M71, M72, M73, and many others.

Key Features:

  • 25mm specially treated textile dome
  • Neodymium magnet assembly
  • Twist lock bayonet mounting
  • Wide and smooth response
  • Very compact design

Basic parameters:

Resonant frequency (fs) 1382 Hz Nominal impedance (Zn) 4 Ω
Effective diaphragm diameter 25 mm DC resistance (Re) 3.0 Ω
Ferrofluid ? Y/N Yes RMS power handling 25 W
Recommended crossover 2.5 kHz 12dB Faceplate diameter -
Sensitivity (2.83V/1m) 93.1 dB Cutout hole diameter -

Here's the full datasheet:

.pdf icon

Peerless by Tymphany

Customer Reviews

Based on 5 reviews
100%
(5)
0%
(0)
0%
(0)
0%
(0)
0%
(0)
J
Jonathan K.
Solid tweeter, good sales and assistance.

New tweeters bought as a replacement for B&W CDM1SE. Willy's fitted them in my existing housings and delivered promptly. Full marks!

Thanks for the review Jonathan!
Will & Caroline

C
Chris McLaughlin

Great tweeter, replaced some B&W CDM1 tweeters that the ferrofluid has ceased up in and these sound even better I think, not quite as harsh.

Bit tricky to fit as they are slightly different but easy enough with a bit of common sense

Thanks for the review Chris !
Will & Caroline

P
Peter Gipper
Thanks for good support and quick delivery

Tweeter works as described replacing a CDM1 Tweeters. Sound is good and Willy's answered all questions I had.

Thanks for the review Peter!

Will & Caroline

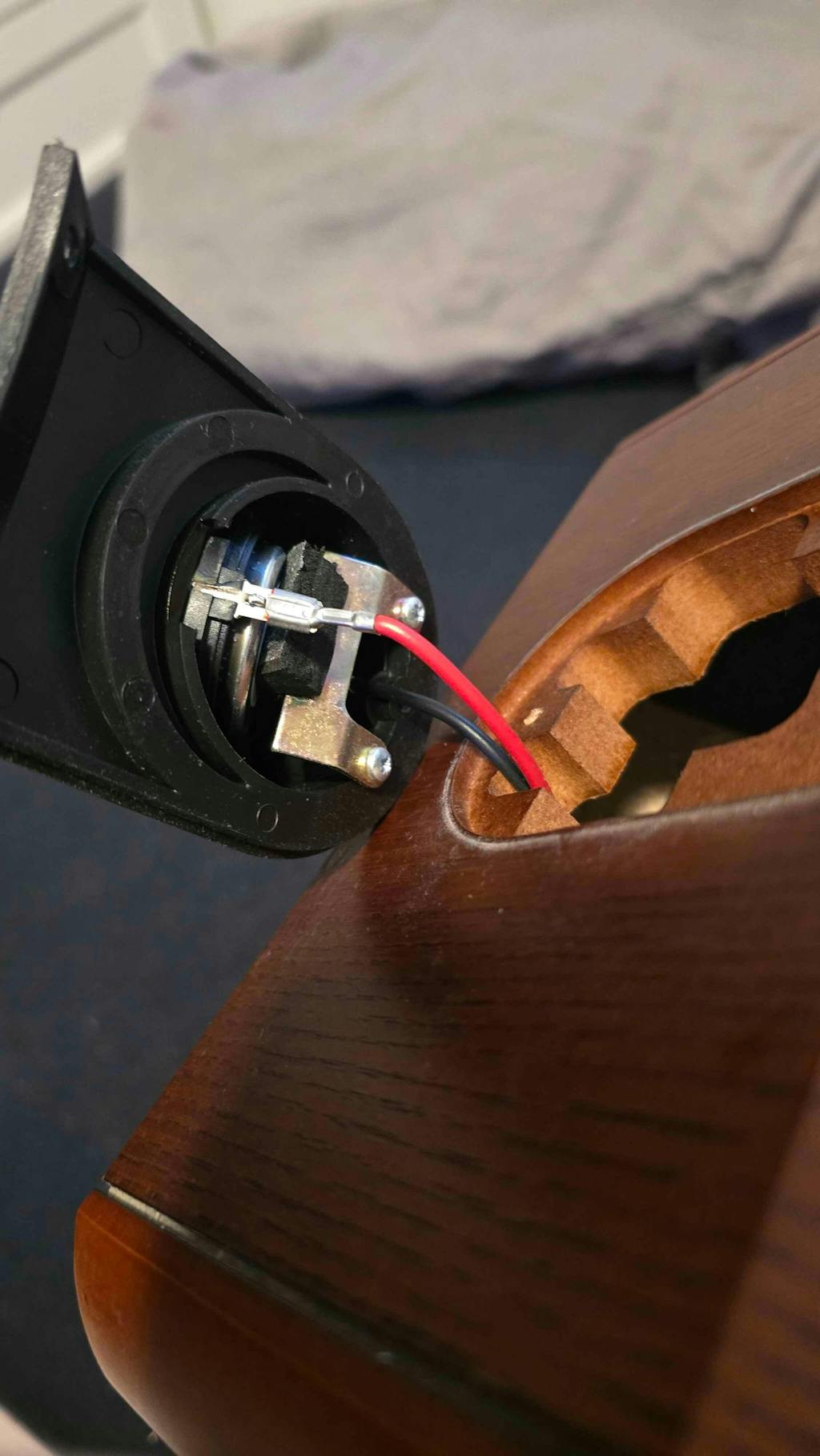

P
Philip Vesey
B&W tweeter repair

Easy fitment to rescue my B&W P4s and they sound great at least to my ears.

Many thanks for the review Philip !

Will & Caroline

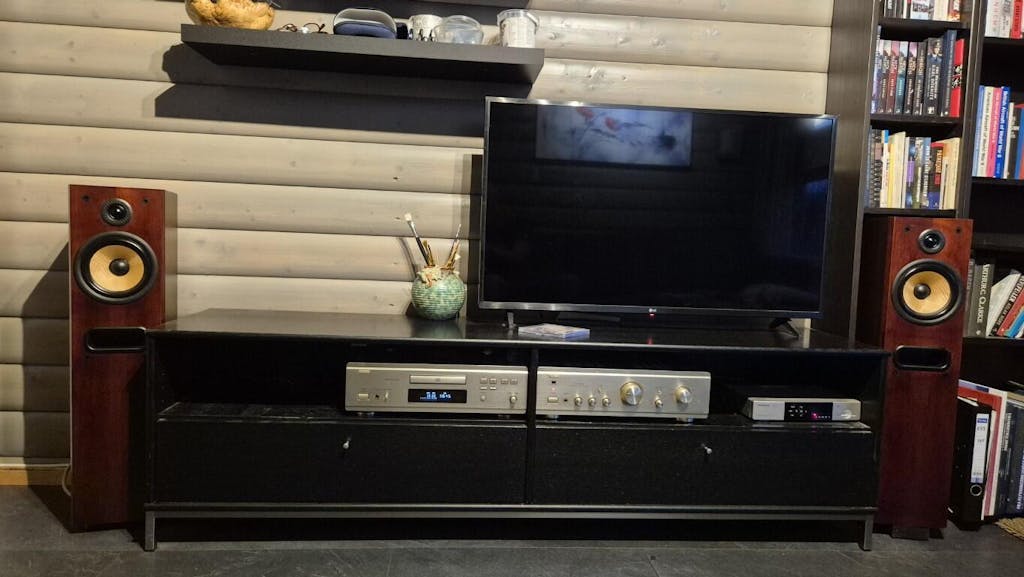

T
Tommy Haukland
B&W Replacement

Used this tweeters on many B&W's that i have fixed and restored and they sound just as good as the orginal.

Same signature tho i think they are smoother somehow the OE can be a bit "hash" but this is not a problem with this Soft domes :)

For your B&W P4/5/6 or CDM or even Matrix series, you cant go wrong with this replacement part :)

Thankyou for your review !
Will & Caroline
