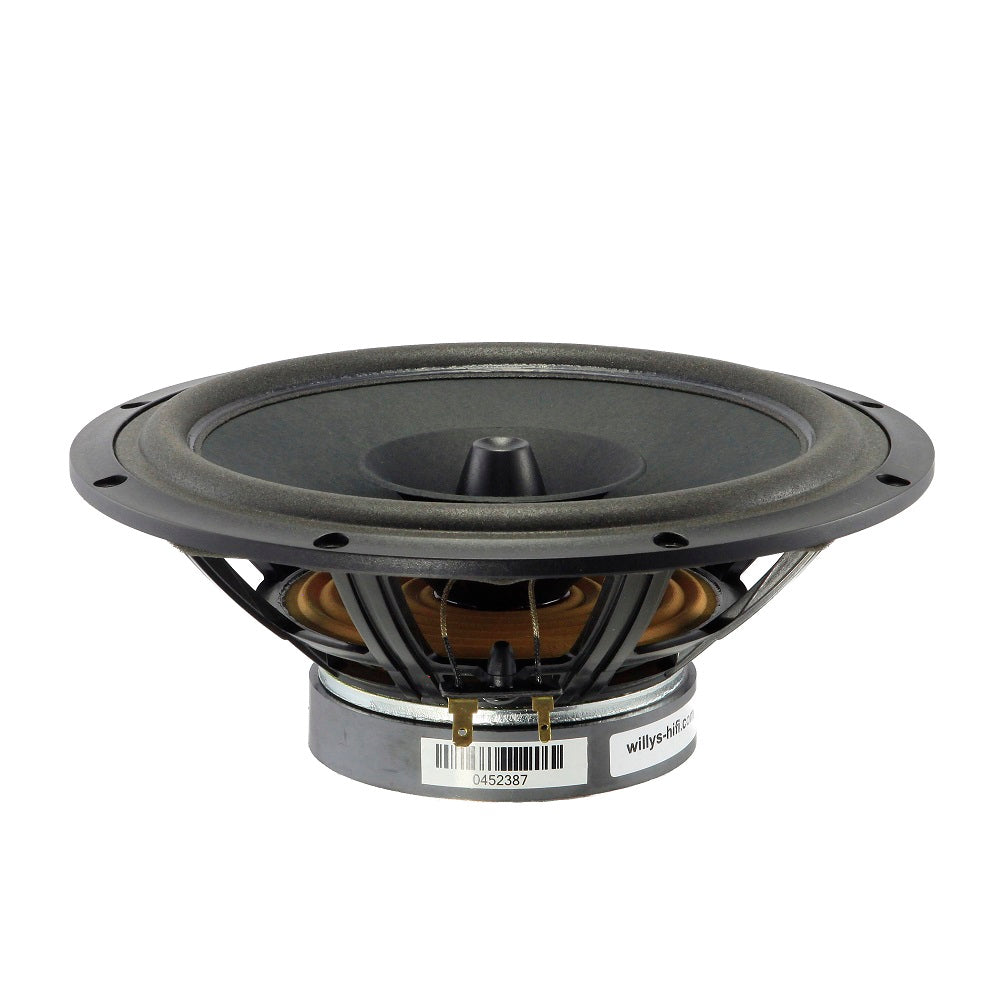

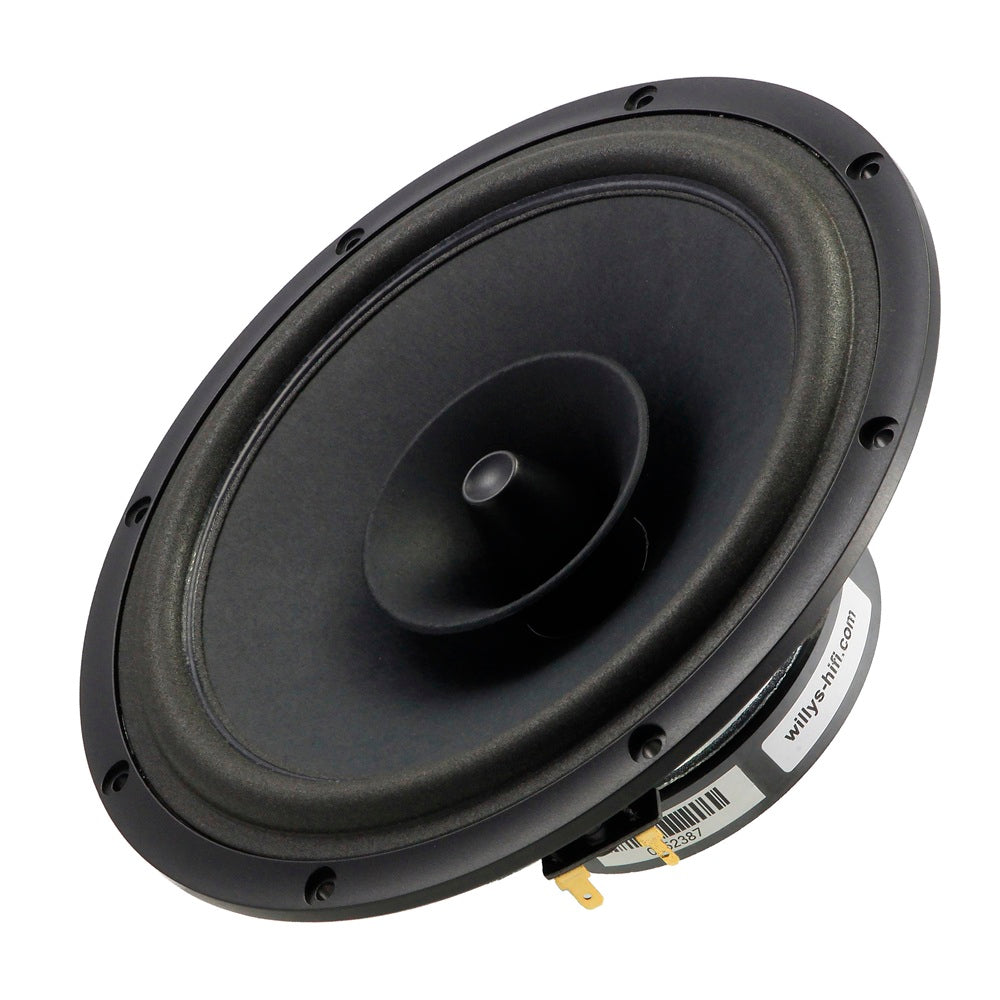

The SB20FRPC30-8 from SB Acoustics is an 8 inch 8 ohm full range loudspeaker drive unit that offers an exceptional frequency response with high sensitivity. This new drive unit is ideal for low powered class A amplifiers and offers a level of performance unheard of at this price point. A very well considered design with a pleasingly full bass response.
|Resonant frequency (fs)||39.4 Hz||Nominal impedance (Zn)||8 Ω|
|Mechanical Q factor (Qms)||10.1
||DC resistance (Re)||6.0 Ω|
|Electrical Q factor (Qes)||0.47
||Max power handling||40 W|
|Total Q factor (Qts)||0.45
|Equivalent volume (Vas)||66.3L||Chassis diameter
