SB Acoustics Satori MD60N-6
SB Acoustics Satori MD60N-6 side view
SB Acoustics Satori MD60N-6 drawing

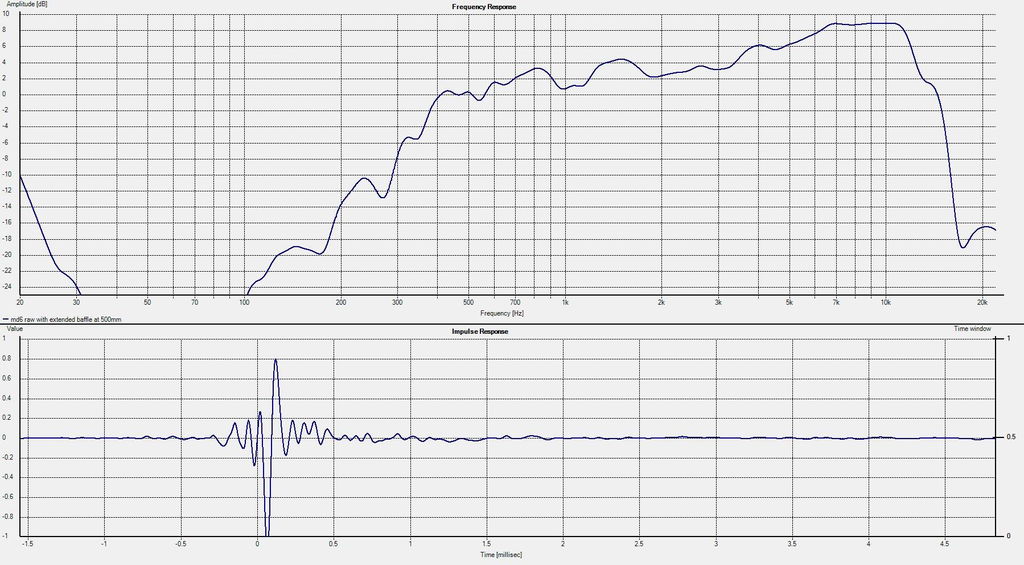

SB Acoustics Satori MD60N-6 graph

MD60N-6

Categories: 2-6 inch Midrange Speaker Drive Units SB Acoustics Midrange Units

SB Acoustics Satori MD60N-6 Soft Dome Midrange Speaker

£128.27

SB Acoustics Satori Logo

Transmission line loaded midrange dome:

UK STOCK ITEM

The SB Acoustics Satori MD60N-6 is a high quality 2½ inch soft dome midrange drive unit. Excellent dispersion and a very smooth and wide frequency response. This is a superb new unit from SB Acoustics.

Key Features:

  • Coated non-resonant soft textile dome.
  • Tuned closed-end transmission line chamber.
  • Dynamic dome stabilizer and flow resistor
  • Machined aluminium faceplate.
  • Vented coil former.
  • Braided long-life silver litz wires.

Basic parameters:

Resonant frequency (fs) 450 Hz Nominal impedance (Zn) 6 Ω
Mechanical  Q factor (Qms) N/A
 DC resistance (Re) 5.3 Ω
Electrical Q factor (Qes) N/A
 Max power handling 30 W
Total Q factor (Qts) N/A
 Sensitivity (2.83V/1m)
 94dB
Equivalent volume (Vas) N/A Faceplate diameter
 130mm

Here's the full datasheet:

.pdf link
