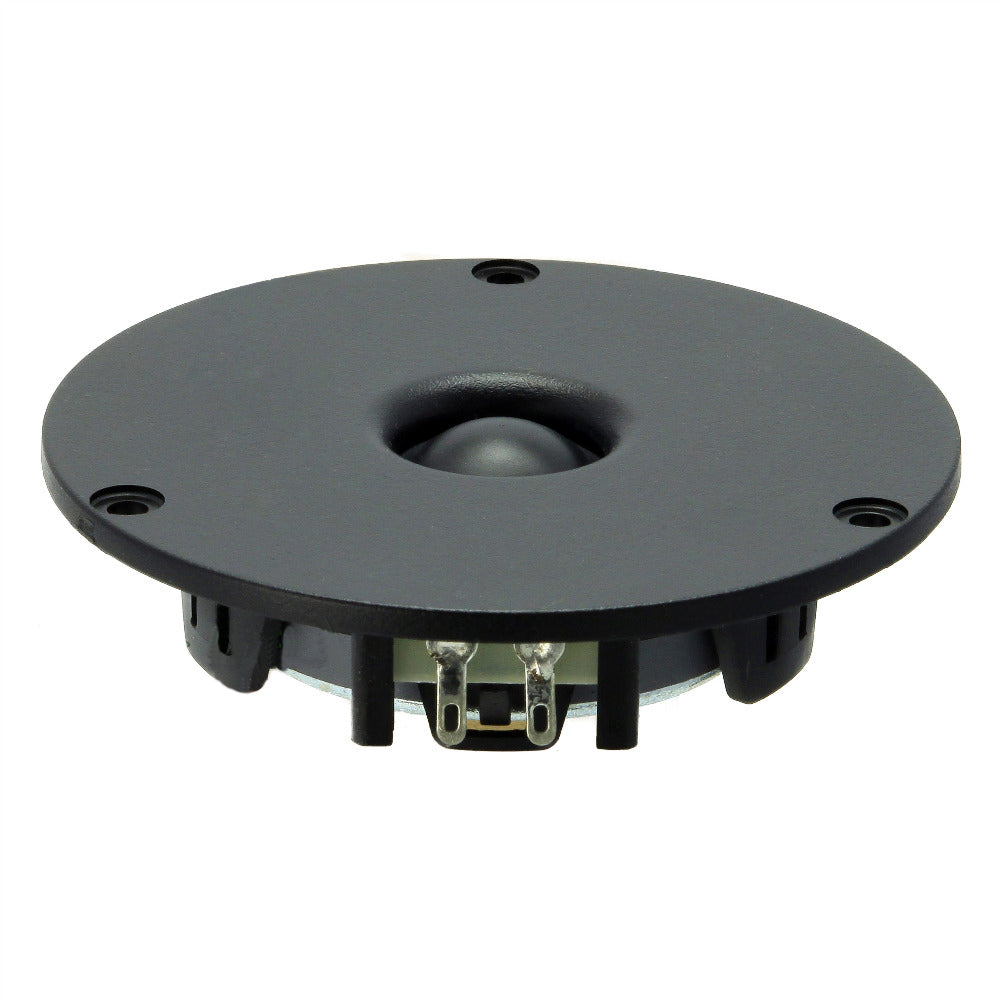

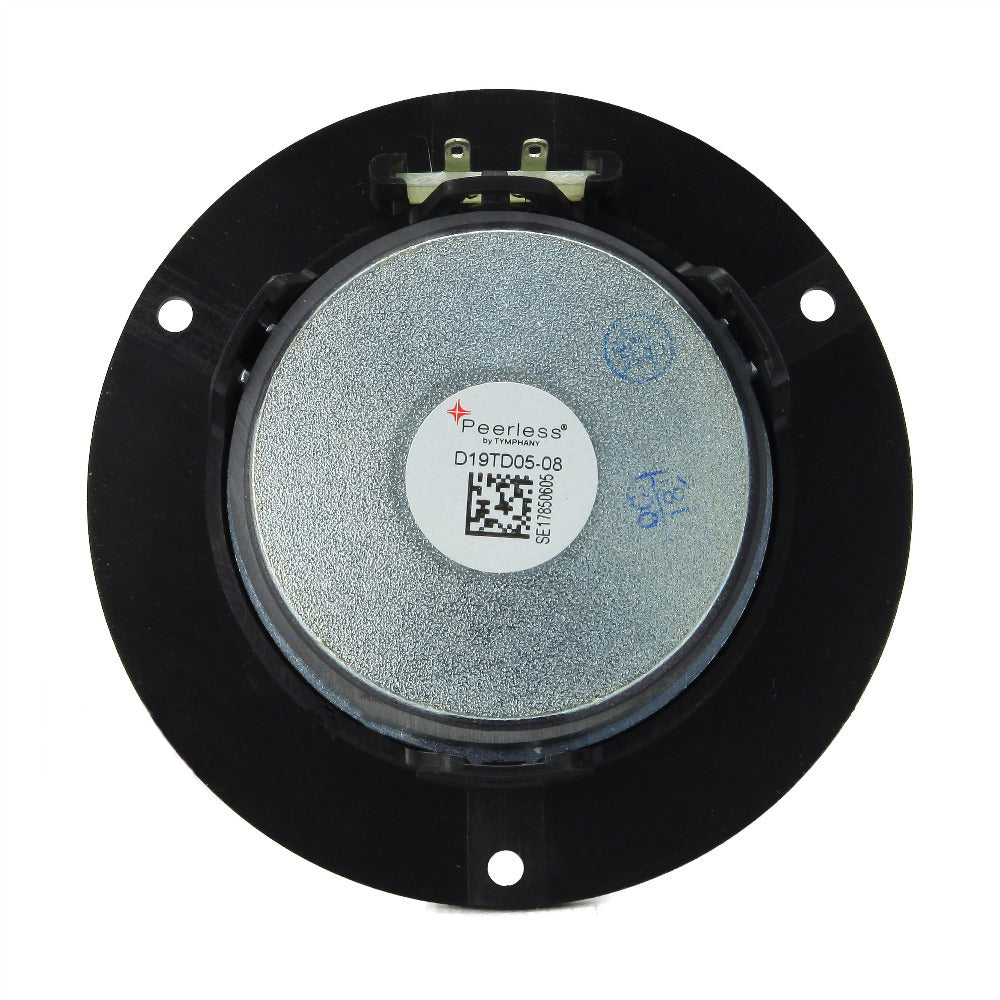

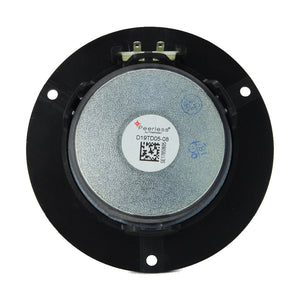

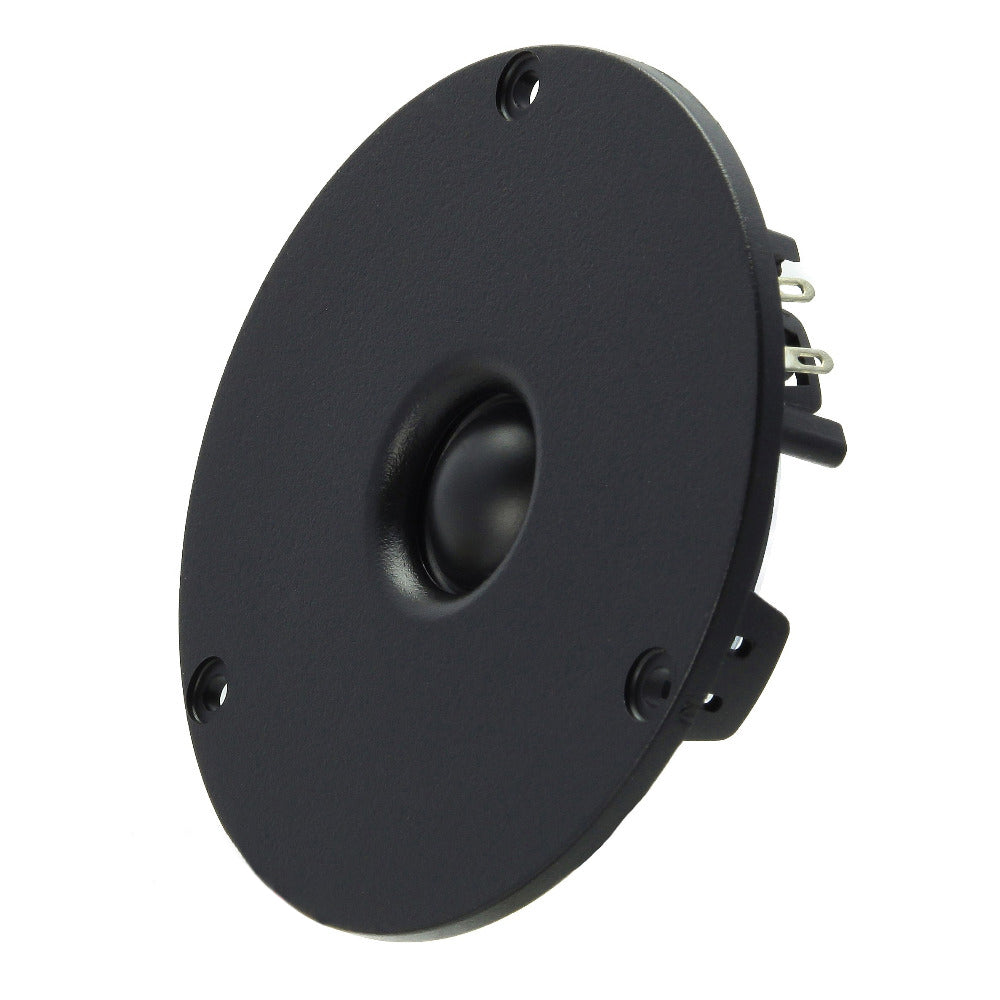

D19TD05-08
IN UK STOCK NOW !
DIRECTLY REPLACES SEAS 19TFF1 / H0737-08
The D19TD-05-08 is possibly the most popular 19mm soft dome of all time. Found in a huge amount of respected and award winning models from manufacturers such as Mission, Rogers, Heybrook, JPW AP2 and AP3, Monitor Audio and countless others, this relatively inexpensive tweeter is a very capable performer hence its long term popularity from the 1980s onwards. An excellent replacement for the Celestion HF2000 & HF2001 (8 ohm versions) found in various Ditton models.
The smooth response and excellent dispersion sets the bench mark at this price point.
| Resonant frequency (fs) | 1687 Hz | Nominal impedance (Zn) | 8 Ω |
| Effective diaphragm diameter | 19 mm | DC resistance (Re) | 6.33 Ω |
| Ferrofluid ? Y/N | Yes | RMS power handling | 100 W |
| Recommended crossover | 3 kHz 18dB | Faceplate diameter | 94 mm |
| Sensitivity (2.83V/1m) | 87.5 dB | Cutout hole diameter | 70 mm |
Peerless / Vifa by Tymphany D19TD05-08, D19TD-05-08
