OC25SC65-04
REPLACES VIFA 0C25SC05-04.
This tweeter features a 25 mm 4 ohm voice coil, a damped fabric dome giving a smooth frequency response and ferrofluid in the gap of the neodymium magnet for enhanced cooling of the voice coil. Twist-lock bayonet mounting for easy installation into custom faceplates / baffles. A full datasheet can be downloaded from the bottom of this page.
Excellent replacement for B&W P4, P5, P6, CDM1, Mission M7, M71, M72, M73, and many others.
| Resonant frequency (fs) | 1382 Hz | Nominal impedance (Zn) | 4 Ω |
| Effective diaphragm diameter | 25 mm | DC resistance (Re) | 3.0 Ω |
| Ferrofluid ? Y/N | Yes | RMS power handling | 25 W |
| Recommended crossover | 2.5 kHz 12dB | Faceplate diameter | - |
| Sensitivity (2.83V/1m) | 93.1 dB | Cutout hole diameter | - |
Peerless by Tymphany
Great tweeter, replaced some B&W CDM1 tweeters that the ferrofluid has ceased up in and these sound even better I think, not quite as harsh.

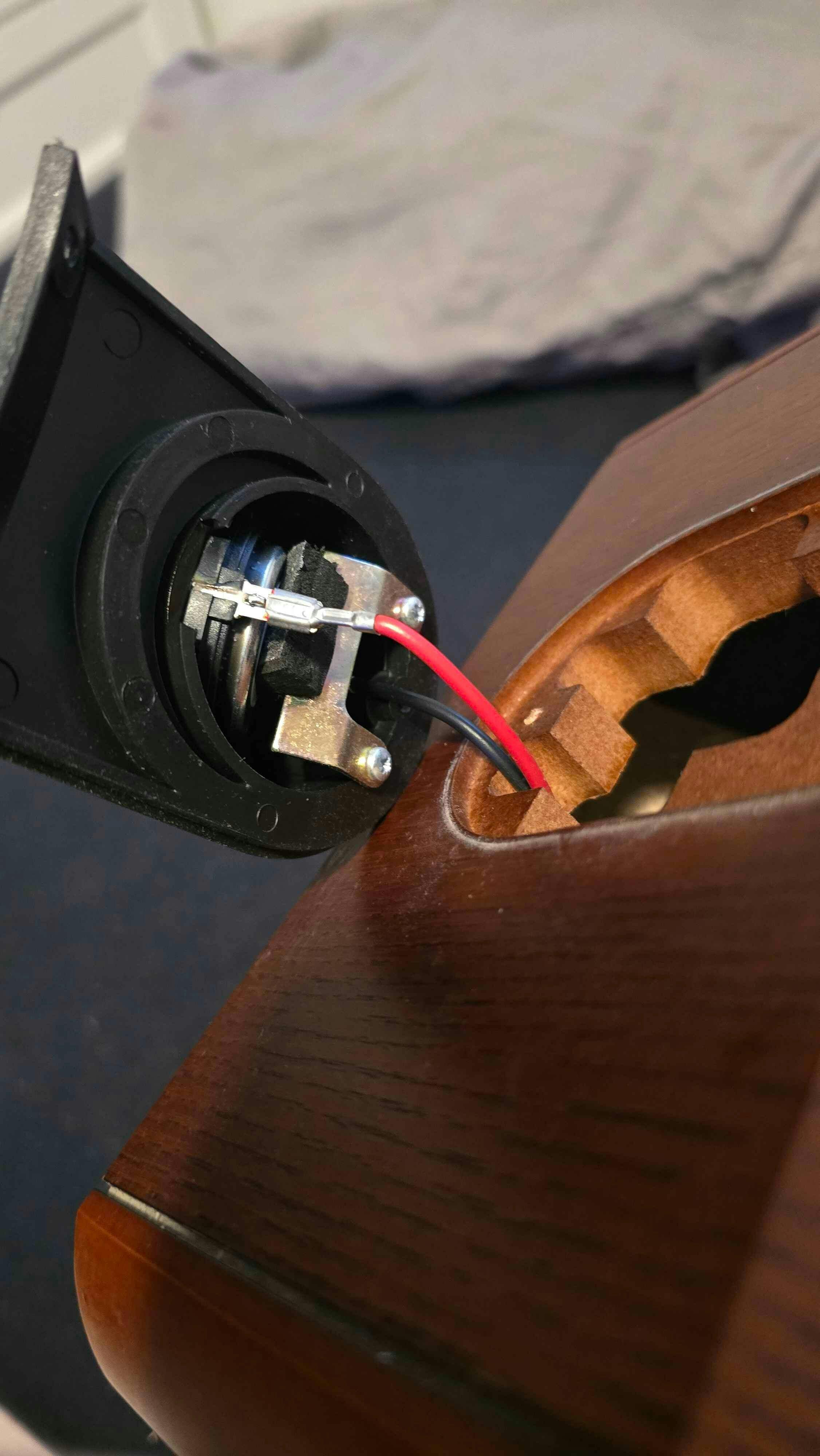

Bit tricky to fit as they are slightly different but easy enough with a bit of common sense
Thanks for the review Chris !
Will & Caroline
Tweeter works as described replacing a CDM1 Tweeters. Sound is good and Willy's answered all questions I had.
Thanks for the review Peter!
Will & Caroline
Easy fitment to rescue my B&W P4s and they sound great at least to my ears.
Many thanks for the review Philip !
Will & Caroline
Used this tweeters on many B&W's that i have fixed and restored and they sound just as good as the orginal.
Same signature tho i think they are smoother somehow the OE can be a bit "hash" but this is not a problem with this Soft domes :)
For your B&W P4/5/6 or CDM or even Matrix series, you cant go wrong with this replacement part :)
Thankyou for your review !
Will & Caroline
