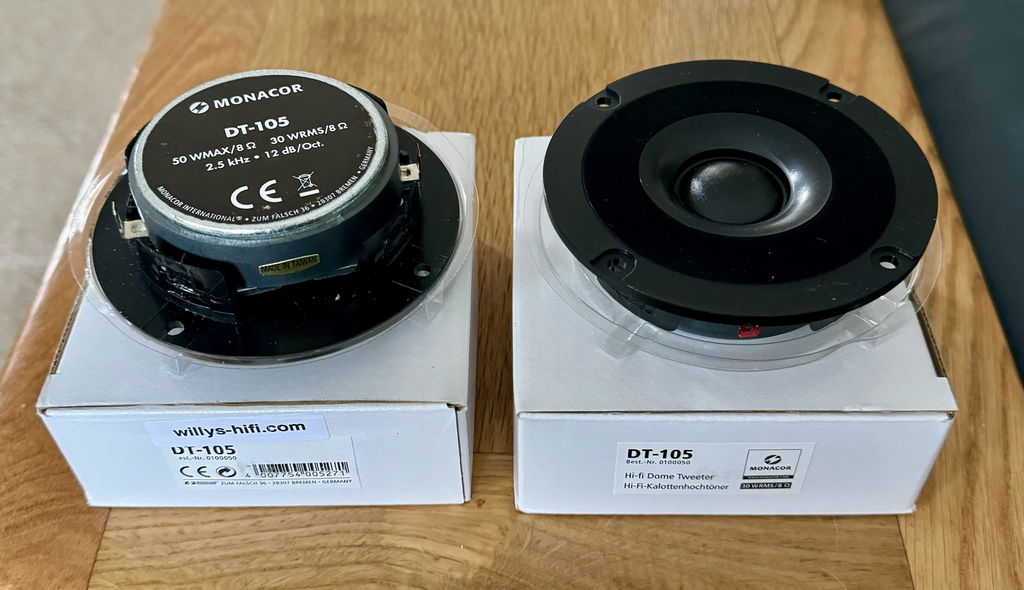

Monacor DT-105 Tweeter

25mm soft dome tweeter.

The Monacor DT-105 features a 25mm coated textile dome, a powerful magnet system, ferrofluid cooling and a damped 100mm faceplate. The frequency response is smooth; this tweeter can be spotted in a few commercial designs...

Key Features:

  • 25mm coated textile dome
  • Powerful magnet system
  • Unfatiguing - easy on the ear
  • Damped 100mm faceplate
  • Excellent value

Basic parameters:

Resonant frequency (fs) 1500 Hz Nominal impedance (Zn) 8 Ω
Effective diaphragm diameter 25mm DC resistance (Re) 5.7 Ω
Ferrofluid ? Y/N Yes
Max power handling 50 W
Recommended crossover 2.5kHz/12dB Faceplate diamter
Sensitivity (2.83V/1m) 90 dB Cutout hole diameter 85 mm

Here's the full datasheet:

.pdf link
