Monacor SPH-5M Bass / Mid speaker

High-quality long excursion 5 inch bass-midrange speaker.

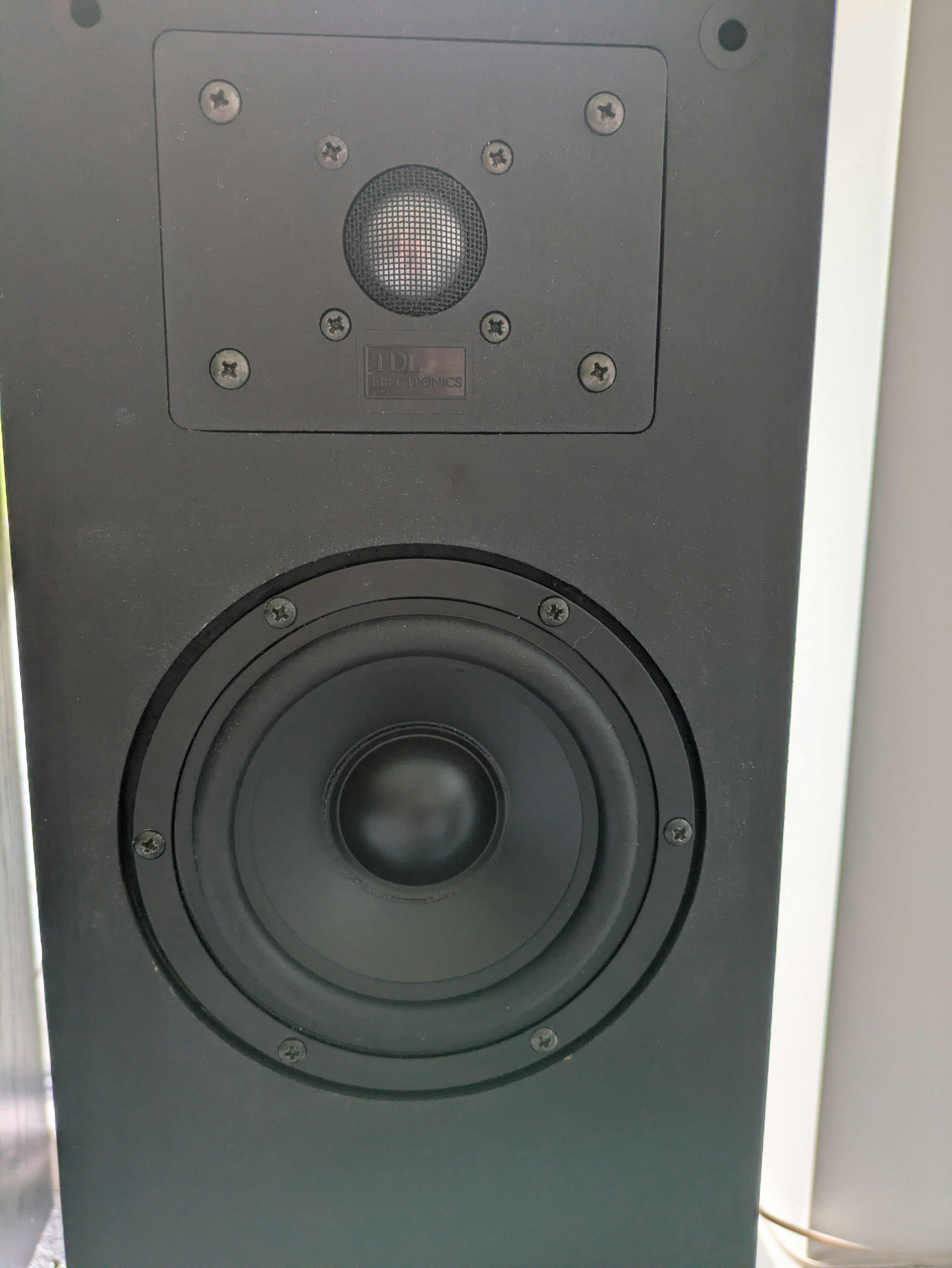

Good replacement for TDL Studio 0.5.

Dampened low-resonance polypropylene cone.

Robust smooth cast alloy chassis with 6 mounting holes.

Drilled pole core and large high efficiency magnet.

For general applications in compact bass-reflex, TML and infinite baffle designs.

Can also be used as a fine midrange unit in 3-way speaker systems.

These work very well in transmission line enclosures.

We also stock an 8 inch version of this driver:  Monacor SPH-8M

Key Features:

  • Damped Polypropylene Cone
  • Aluminium Voicecoil Former
  • Heavy Duty Die Cast Chassis
  • Very Smooth Response
  • Long Throw Design
  • Extension down to 34 Hz
  • Vented Pole Piece

    Basic parameters:

    Resonant frequency (fs) 45 Hz Nominal impedance (Zn) 8 Ω
    Mechanical Q factor (Qms) 2.89 DC resistance (Re) 6.3 Ω
    Electrical Q factor (Qes) 0.47 Max power handling 80W
    Total Q factor (Qts) 0.41 Sensitivity (2.83V/1m) 88 dB
    Equivalent volume (Vas) 13.47L Chassis diameter 150 mm


    Here's the full datasheet:

    .pdf icon


    Customer Reviews

    Based on 1 review
    Simon Rae
    Cracking little drive unit

    This is a great driver for a transmission line or tapered pipe design. Good quality, if basic, chassis - nice and rigid with a chunky magnet. Nice smooth midrange making it easy to integrate with a range of HF units. I used the Fountek NeoX1.0 Ribbon Tweeter which is similarly an impressive unit. A good combination.

    Thankyou for your review !
    Will & Caroline
