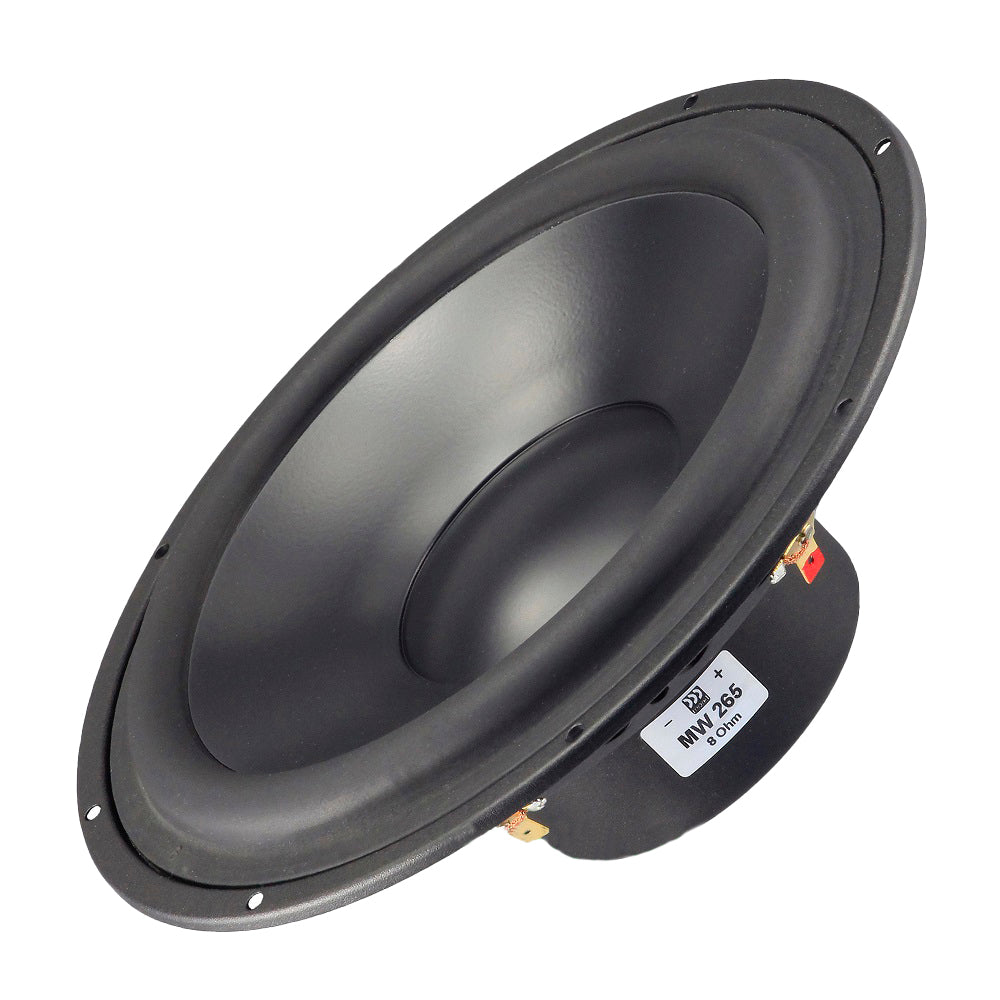

Morel MW265 8" Midwoofer Damped Polymer Cone

Name: Morel MW265 8" Midwoofer Damped Polymer Cone
Brand: Morel
SKU: MW265
Price: 140.21 GBP
Availability: InStock

£140.21

Morel MW265 - Reissued Classic Drive Unit.

Morel Logo

EXCLUSIVE - IN UK STOCK.

The Morel MW265 is an 8 inch high Qts design specifically for bass / midbass applications in IB enclosures. An excellent choice for larger 2 or 3 way sealed systems. Not suitable for ported or TL cabinets.

Key Features:

High power handling 1000W peak.
Double ferrite magnet system.
75mm hexatech alumium voice coil.
Neoprene rubber surround.
Vented rigid steel chassis.
Minimal stray magnetic field.
Shallow DPC cone.

Basic parameters:

Resonant frequency (fs)	30 Hz	Nominal impedance (Zn)	8Ω
Mechanical Q factor (Qms)	2.79	DC resistance (Re)	5.2 Ω
Electrical Q factor (Qes)	0.79	Peak power handling	1000W
Total Q factor (Qts)	0.61	Sensitivity (2.83V/1m)	89dB
Equivalent volume (Vas)	61 L	Chassis diameter	222 mm

Morel MW265 8" Midwoofer Damped Polymer Cone

Morel MW265 - Reissued Classic Drive Unit.

Key Features:

Basic parameters:

Here's the full datasheet:
