SB26STC-C000-4

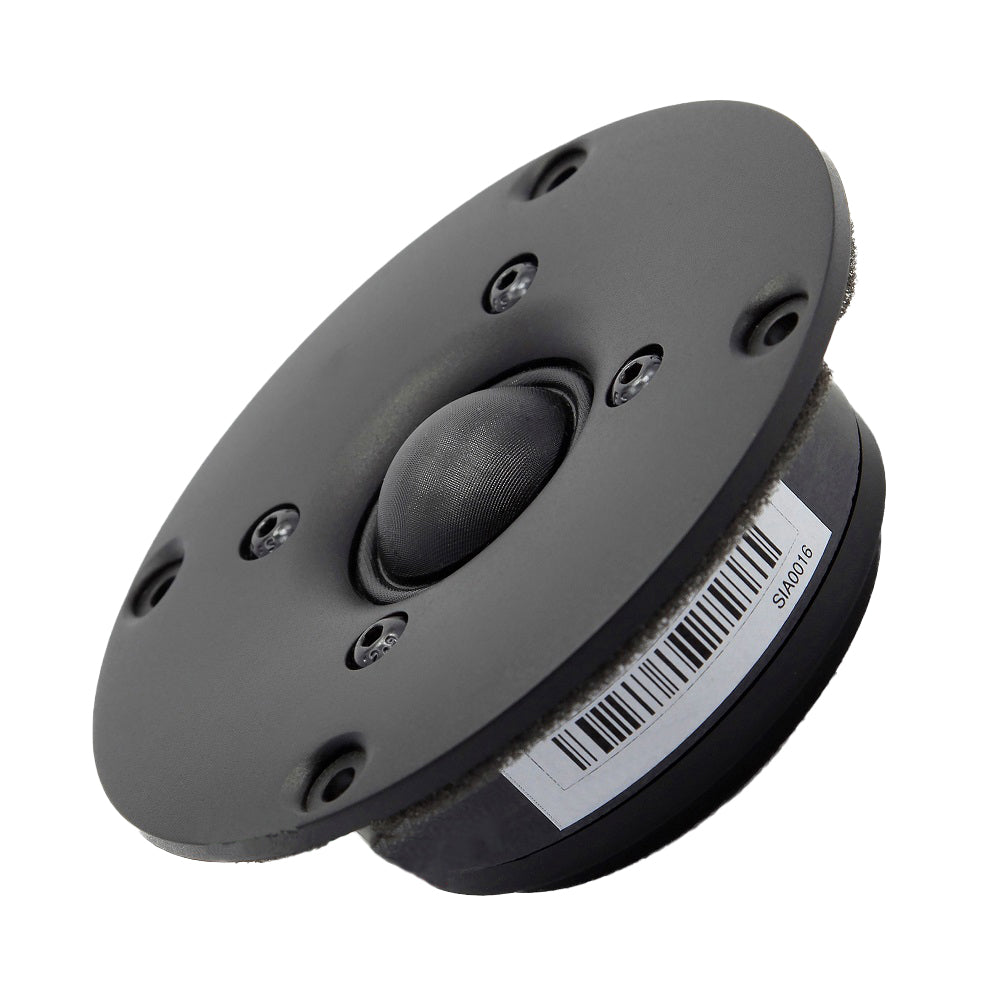

SB Acoustics SB26STC-C000-4 Tweeter

SB Acoustics logo

UK STOCK ITEM

The SB26STC-C000-4 is a 26mm soft dome tweeter from SB Acoustics featuring a 100mm injection moulded faceplate and a zero reflection damped rear chamber. This tweeter has an extended response with good off axis characteristics.

Key Features:

  • Optimized damping in pole cavity to eliminate internal reflection
  • Tuned / damped rear chamber offers a low Fs of just 750 Hz.
  • Fine weave soft fabric dome for smooth frequency response
  • Saturation controlled motor system for reduced distortion
  • CCAW voice coil for low moving mass
  • Long life silver lead wires

Basic parameters:

Resonant frequency (fs) 750 Hz Nominal impedance (Zn) 4 Ω
Effective diaphragm diameter 26mm DC resistance (Re) 3.2 Ω
Ferrofluid ? Y/N Yes
Max power handling 120 W
Recommended crossover 2.6kHz/12dB Faceplate diameter
100mm
Sensitivity (2.83V/1m) 91.5dB Cutout hole diameter 82mm

Here's the full datasheet:

.pdf link
