D2604/833000

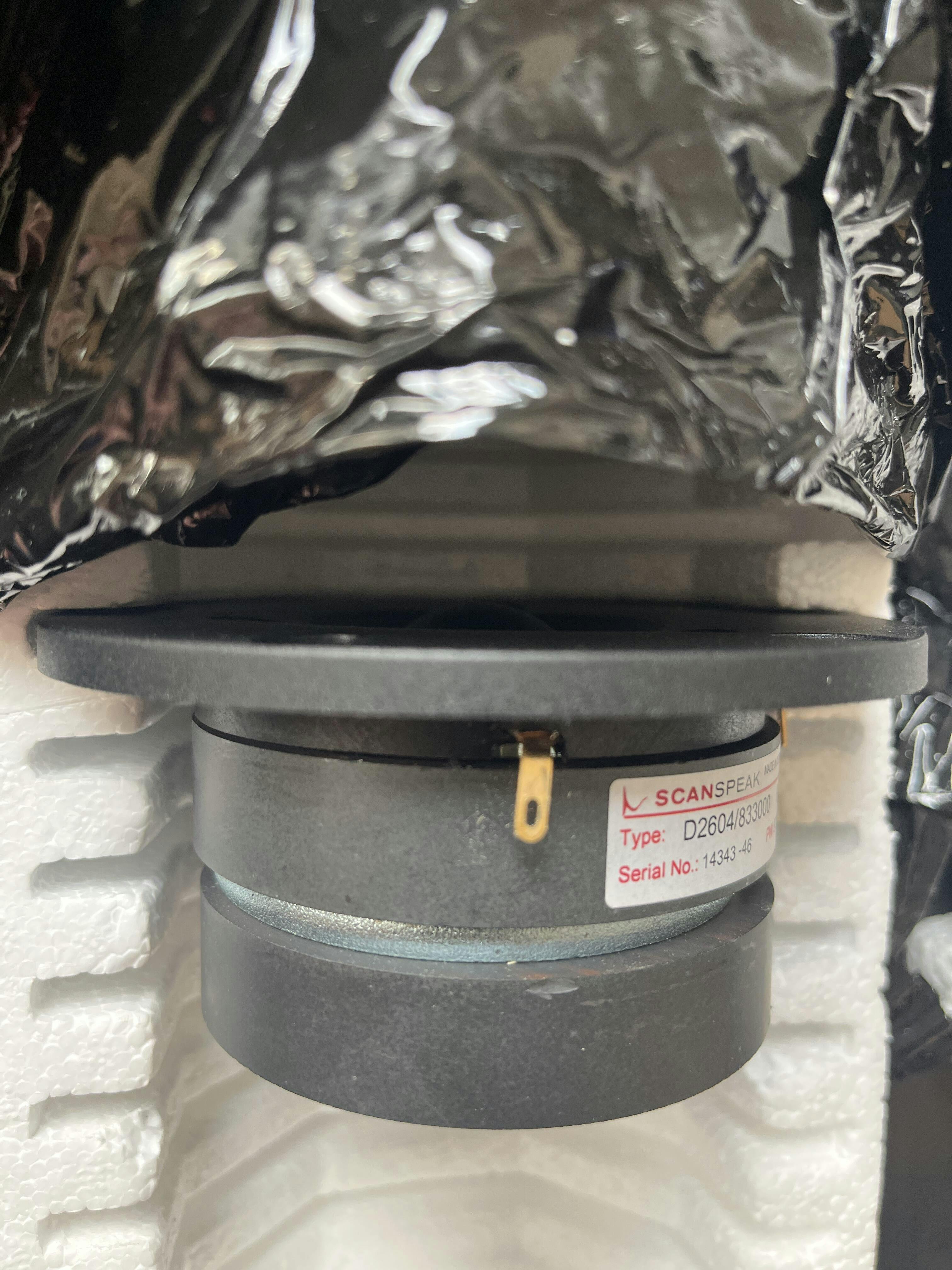

Scanspeak D2604/833000 Tweeter - Discovery Range

Scanspeak D2604/833000 Discovery Range.

Discovery logo

Tuned rear chamber gives very low resonant frequency of 475 Hz. Good off axis dispersion and extended upper response to 40 Khz. High sensitivity 93dB.
Excellent value and sound quality.

The entry level Discovery series offer the legendary Scanspeak superior sound at a favourable price point; they combine a wealth of technical features & innovations - the sound quality to price ratio is superb.

Key Features:

  • Extended Upper Range to Above 40KHz
  • Textile Diaphragm, Wide Surround
  • Low Resonance Frequency - 475Hz
  • High sensitivity - 93dB
  • Wide Dispersion
  • Low Distortion

Basic parameters:

Resonant frequency (fs) 475 Hz Nominal impedance (Zn) 4 Ω
Effective diaphragm diameter 26 mm DC resistance (Re) 2.8 Ω
Ferrofluid ? Y/N No RMS power handling 100 W
Recommended crossover 2.5 kHz 12dB Faceplate diameter 104 mm
Sensitivity (2.83V/1m) 93 dB Cutout hole diameter 72 mm

Here's the full datasheet:
