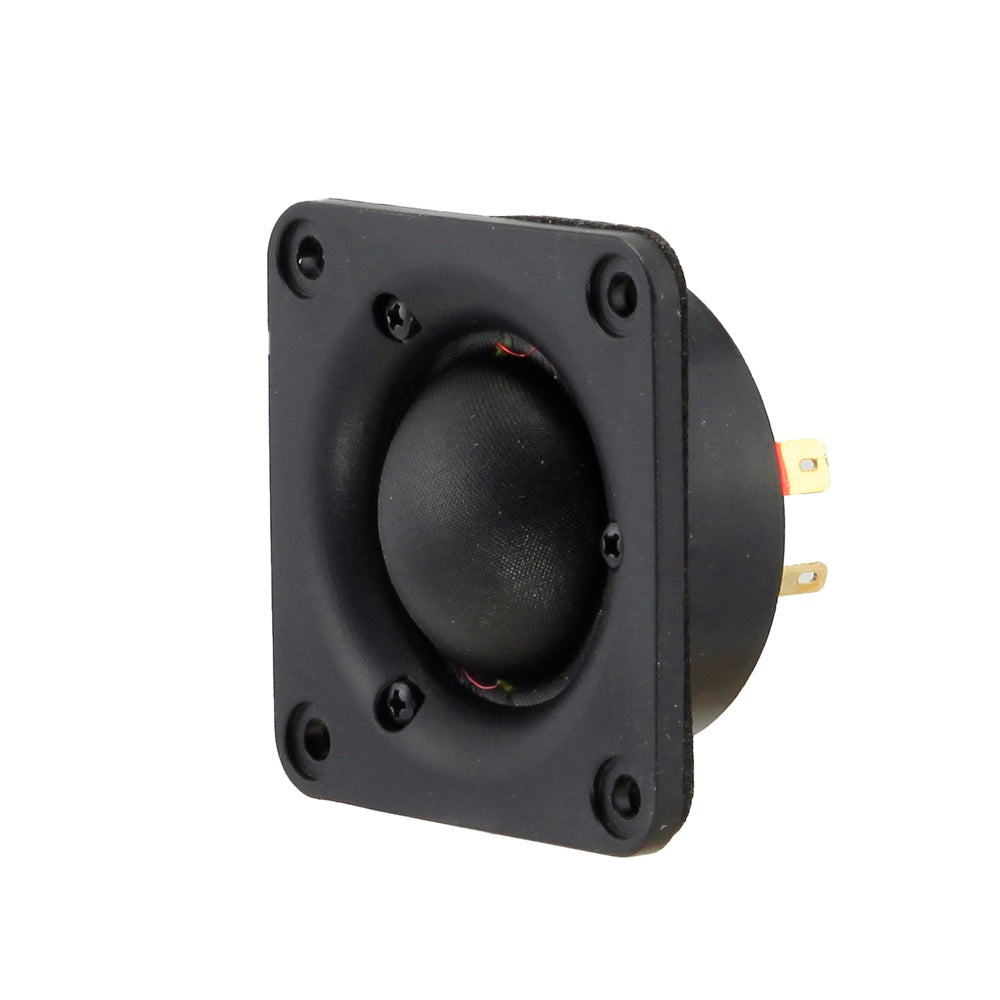

MDT12
UK STOCK ITEM
The Morel MDT12 features a hand coated soft textile dome, 28mm copper voice coil and a vented neodymium magnet assembly.
This classic series tweeter can be mounted very close to other drive units due to it's compact dimensions making it ideal for high performance MTM / D'Appolito configurations.
A full datasheet can be downloaded from the bottom of this page.
| Resonant frequency (fs) | 1000Hz | Nominal impedance (Zn) | 8 Ω |
| Effective diaphragm diameter | 28mm | DC resistance (Re) | 5.2 Ω |
| Ferrofluid ? Y/N | Yes | RMS power handling | 80W |
| Recommended crossover | 3 kHz / 12dB | Faceplate (square) | 54 mm |
| Sensitivity (2.83V/1m) | 89dB | Cutout hole diameter | 44 mm |
