BST-1

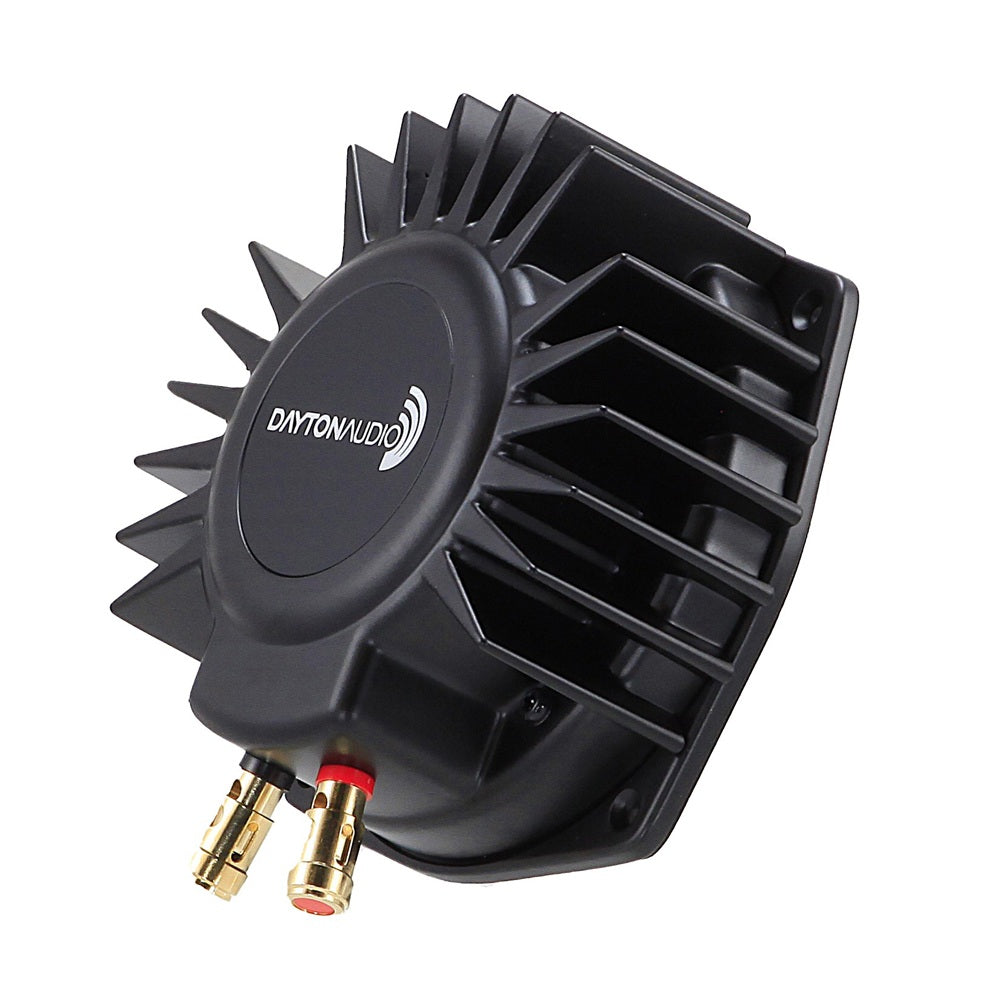

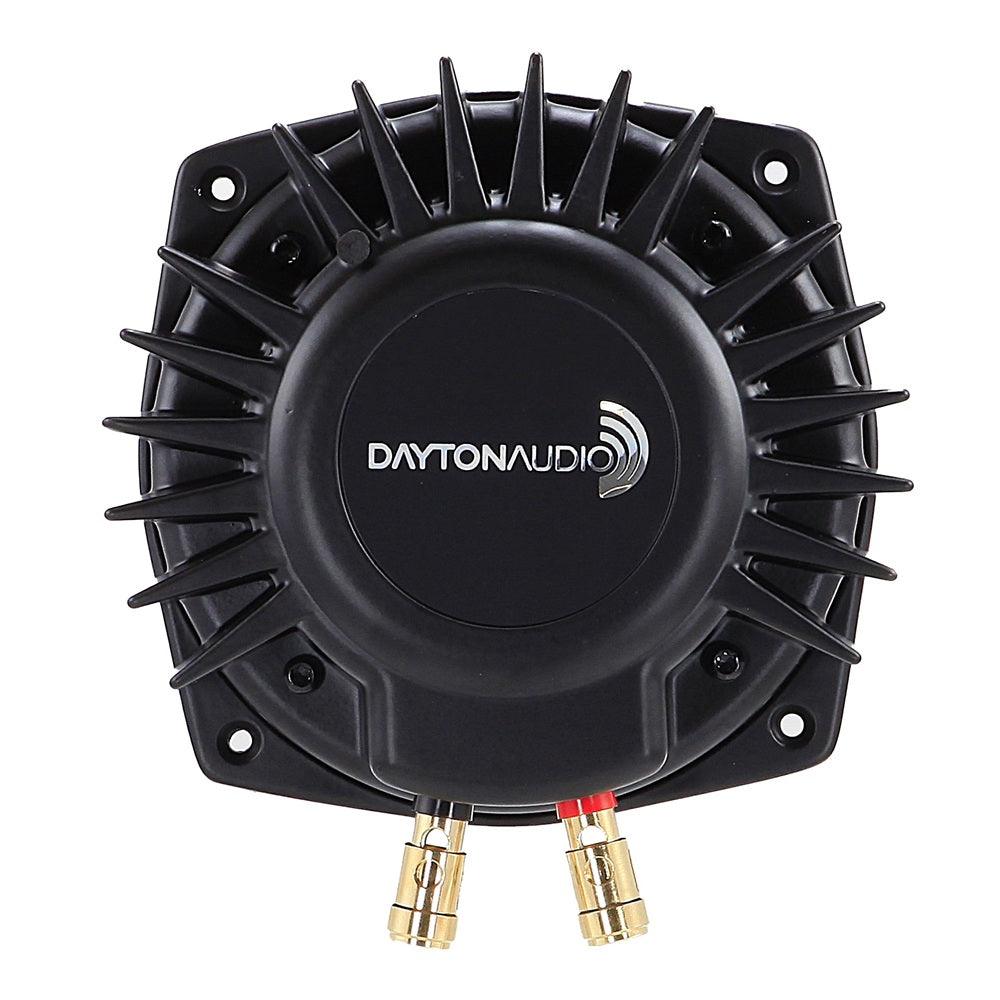

The BST-1 is a rugged high power bass shaker module designed for mounting on gaming / racing simulator chairs, under car seats and advanced home cinema applications. The sensation of tight subsonic bass it produces adds a level of realism to music, games and films that has to be felt to be believed. The BST-1 is essentially a high power bass transducer mounted inside a sealed rugged alloy enclosure that acts as a substantial heatsink. Can be used singly, in a stereo pair or in a multiple array for more extreme effects. Cable ties can be used for mounting but ideally the BST-1 should be firmly bolted for maximum transmission; the better the mounting / mechanical coupling the higher the amplitude and impact of the output.
This is a very versatile unit that can be discretely mounted virtually anywhere that you sit and listen including being mounted on the frame of your sofa. As the BST-1 operates on the principle of tactile transmission it is not affected by the room size or acoustics.
An ultimate addition to any high end gaming, home cinema or car audio system (must be mounted inside the vehicle). The vibrations radiate through your body, it's almost like being at a concert with very tight and dynamic bass - it certainly shocked us !

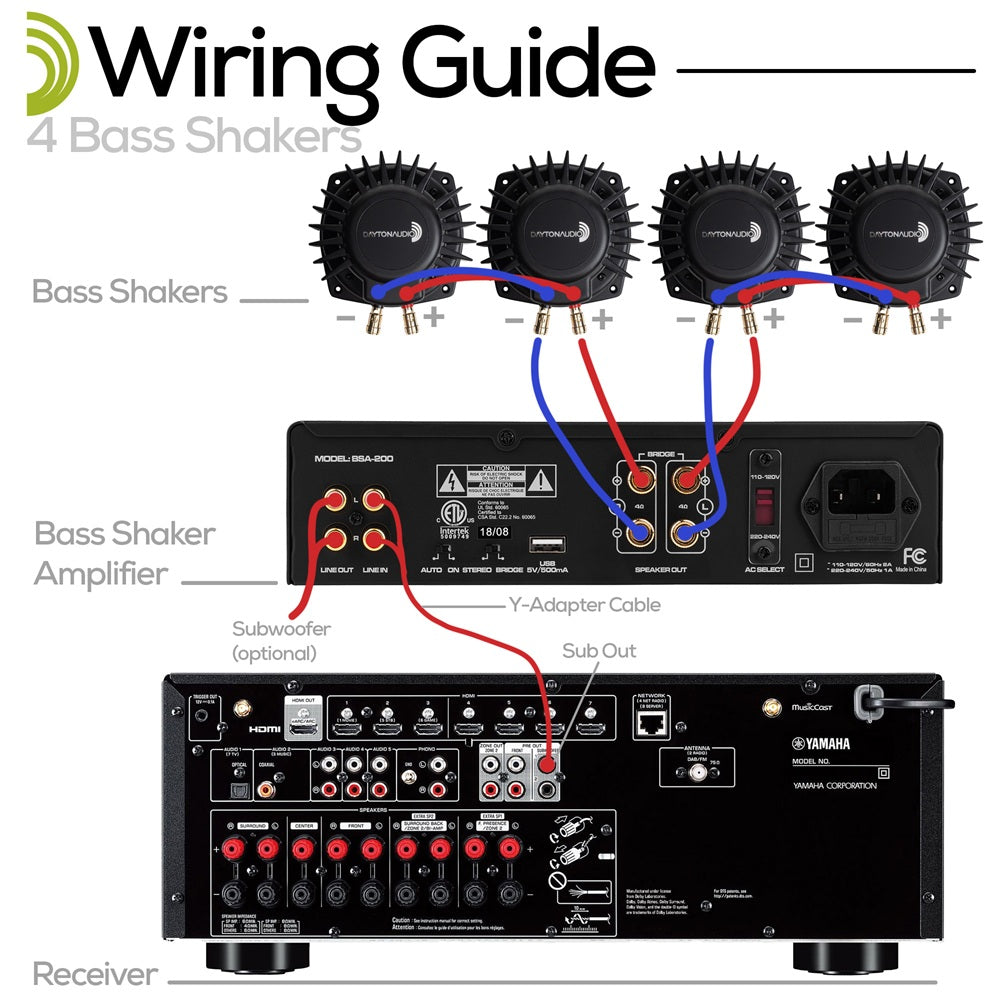

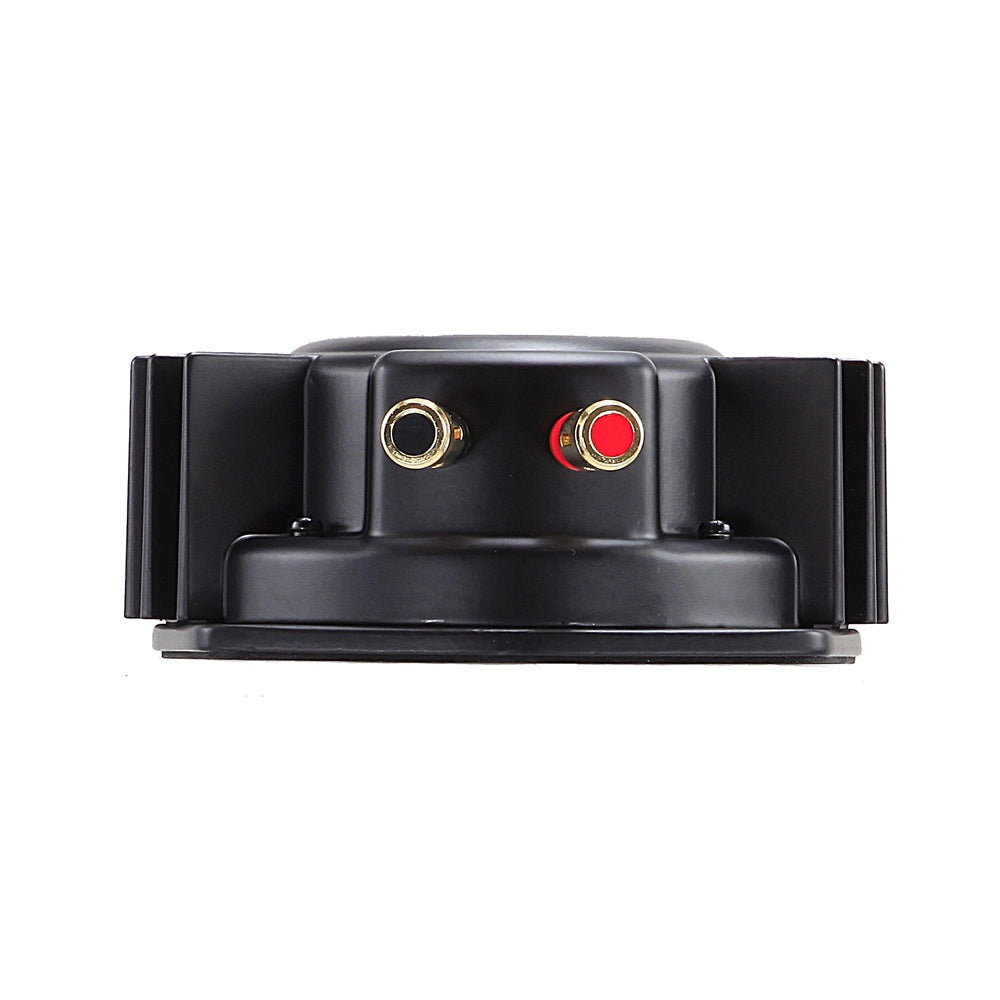

This is a passive item that requires an amplifier ideally with low pass output i.e. sub out. There are some manufacturer suggested wiring examples in the pictures. Electrical connection is very simple via spring loaded binding posts.
High Grade Aluminum Housing
Frequency Response: 10-80 Hz
Fs (unmounted): 30 Hz
Impedance: 4 Ohms
Power Handling: 50 Watts RMS
Peak force: 30 lbs. per ft.
