XO2W-3K

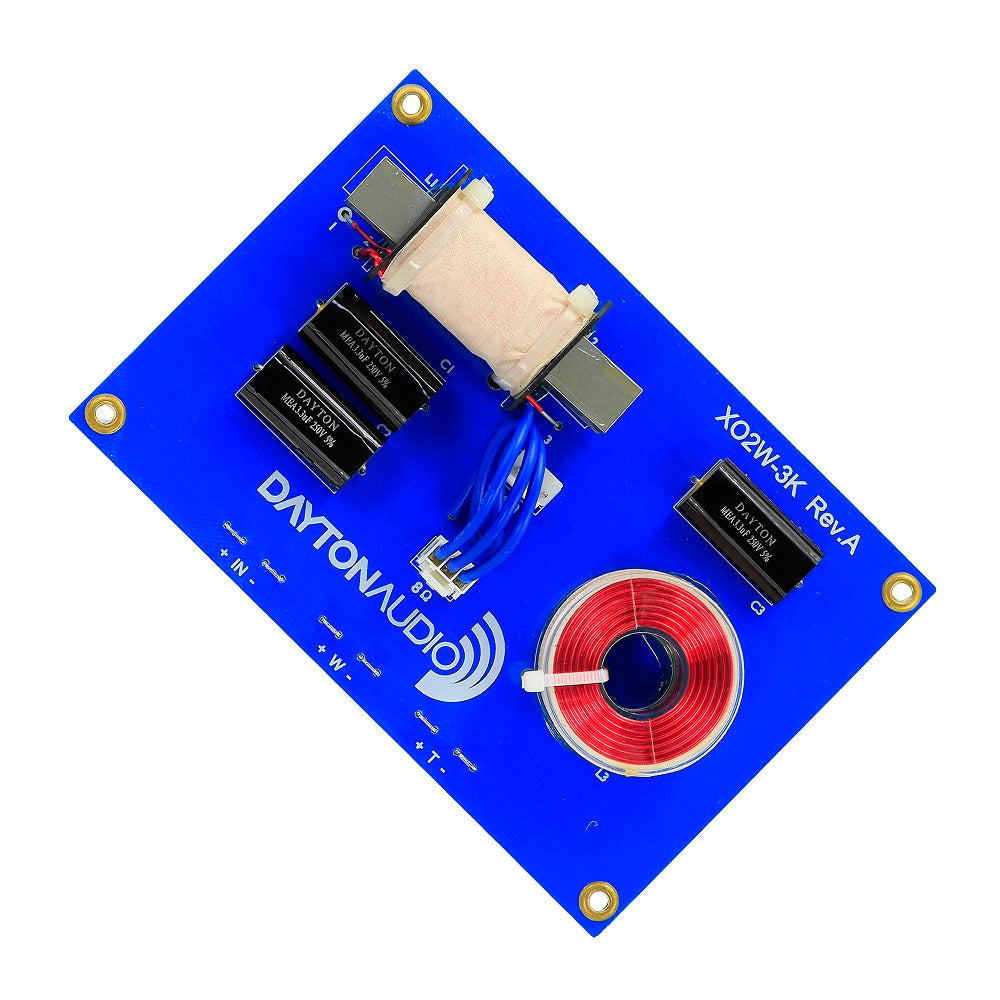

Ready built loudspeaker crossover featuring a 1mm OFC high current laminated bar core inductor in the low pass section, an air core inductor in the treble section and metal film capacitors throughout - all components are bonded to the PCB to eliminate possible rattles.
This crossover has a second order (12dB/octave) Linkwitz-Riley rolloff and can be configured for 4 or 8 ohm woofers by simply moving a plug which opens up opportunities for MTM / D'Appolito designs. The treble section is designed for 8 ohm tweeters. For use in a domestic environment, power rating of 300W.
Connections are by 4.8mm faston / spade push connectors (available here: 4.8mm connectors) . Easy to surface mount inside the loudspeaker enclosure, does not need standoffs.
With a rugged 1.75mm glassfibre PCB bonded to a 4mm MDF backboard this is a very well made crossover representing excellent value for money.
Size: 170 x 115 x 40mm approx.
