DRIVE UNITS BY MANUFACTURER:
SPH-135/AD
DISCONTINUED BY MANUFACTURER - SOLD OUT.
This 135mm / 5¼" unit is used in the Sterling Broadcast LS3/5a.
Featuring a mineral loaded (carbonised) polypropylene cone with a high internal damping factor, this unit offers a flat extended response with non of the large midrange peaks that plagued the majority of bextrene coned B110s.
A great replacement for a huge range speakers including various models from Mission, Castle, JPW, Rogers and others.
Resonant frequency (fs) | 39 Hz | Nominal impedance (Zn) | 8 Ω |
Mechanical Q factor (Qms) | 3.40 | DC resistance (Re) | 6 Ω |
Electrical Q factor (Qes) | 0.42 | Max power handling | 60W |
Total Q factor (Qts) | 0.37 | Sensitivity (2.83V/1m) | 89 dB |
Equivalent volume (Vas) | 26L | Chassis diameter (pincushion profile) | 135 mm |
SPH135AD, SPH 135AD

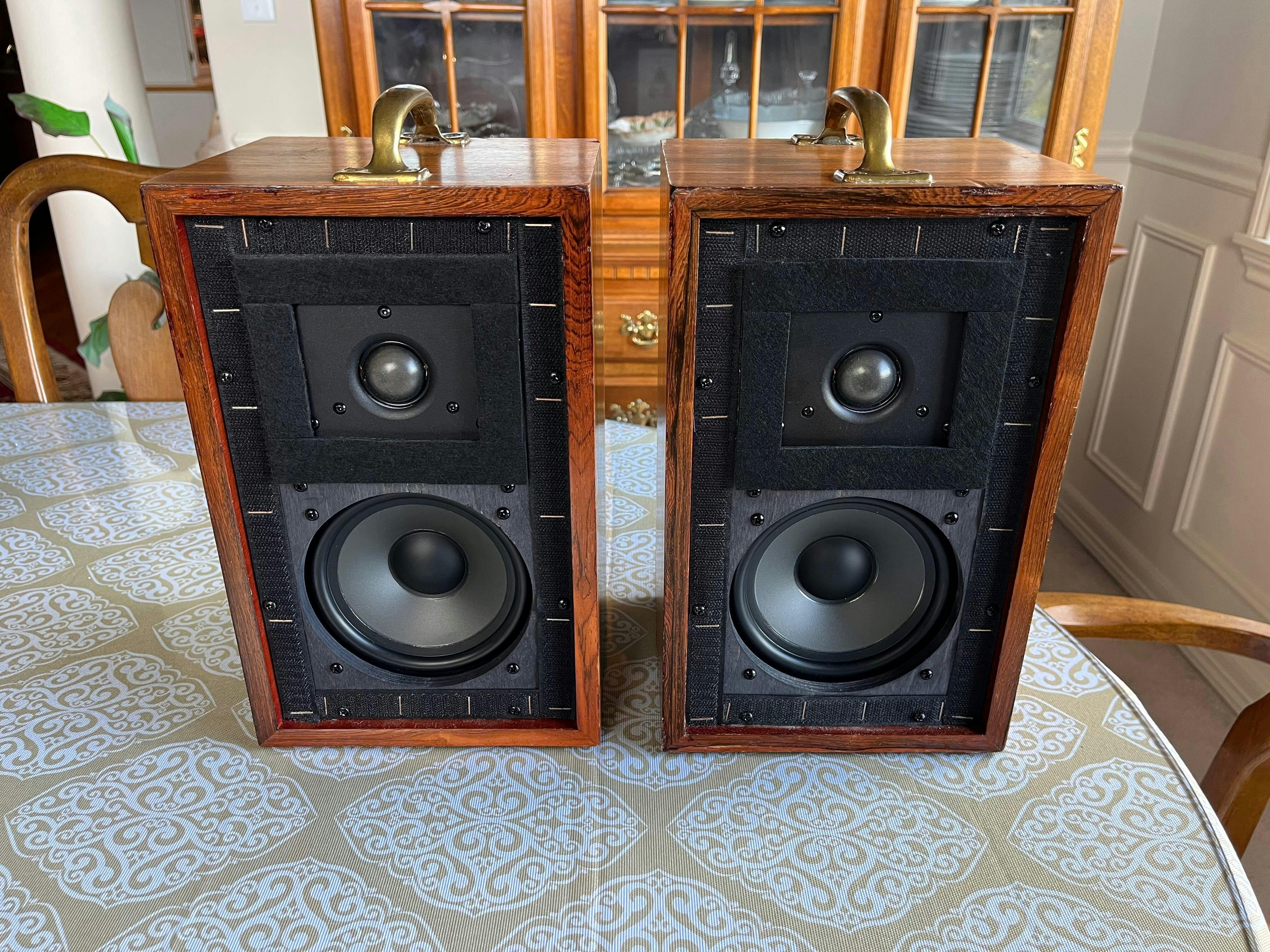

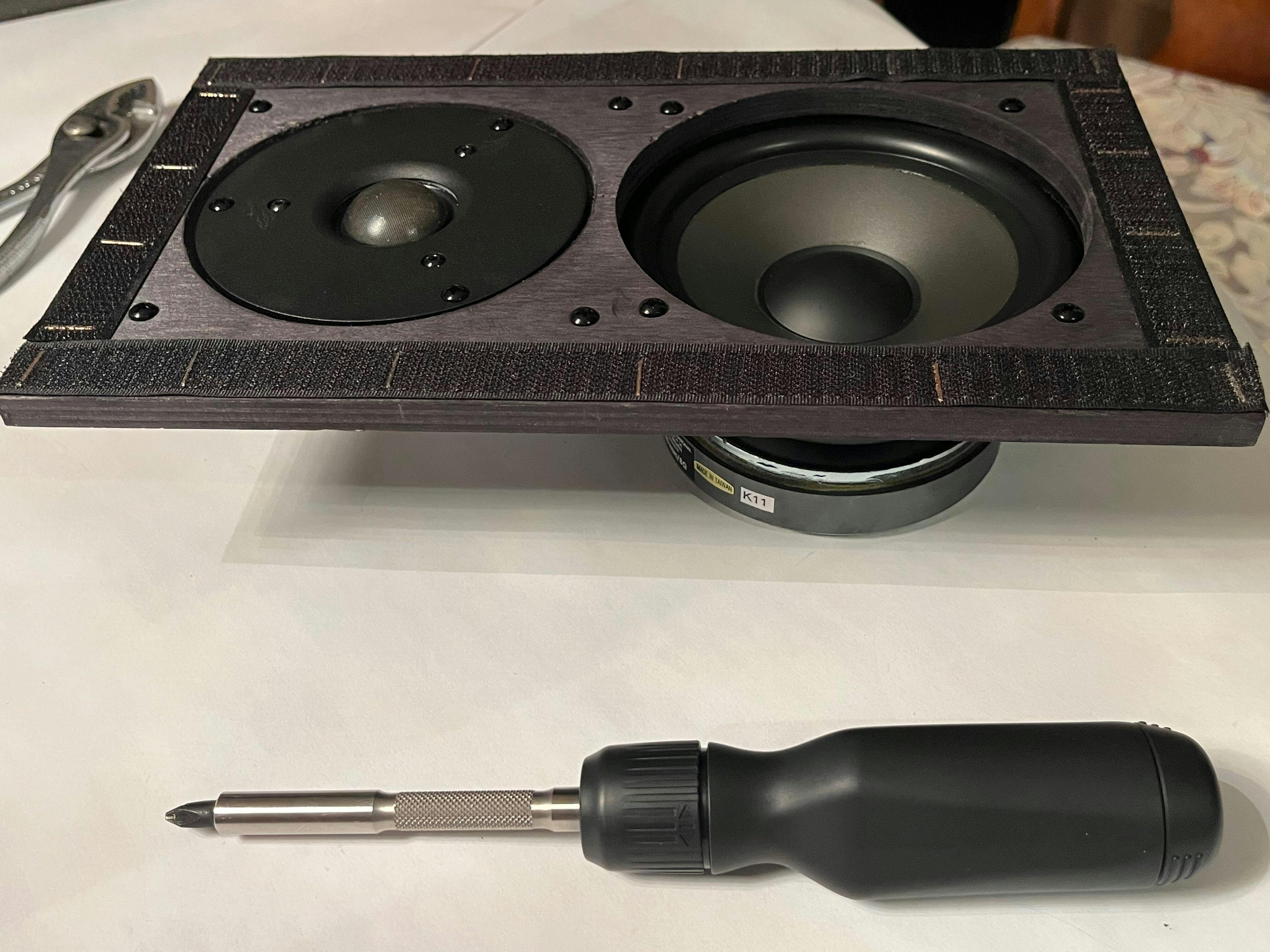

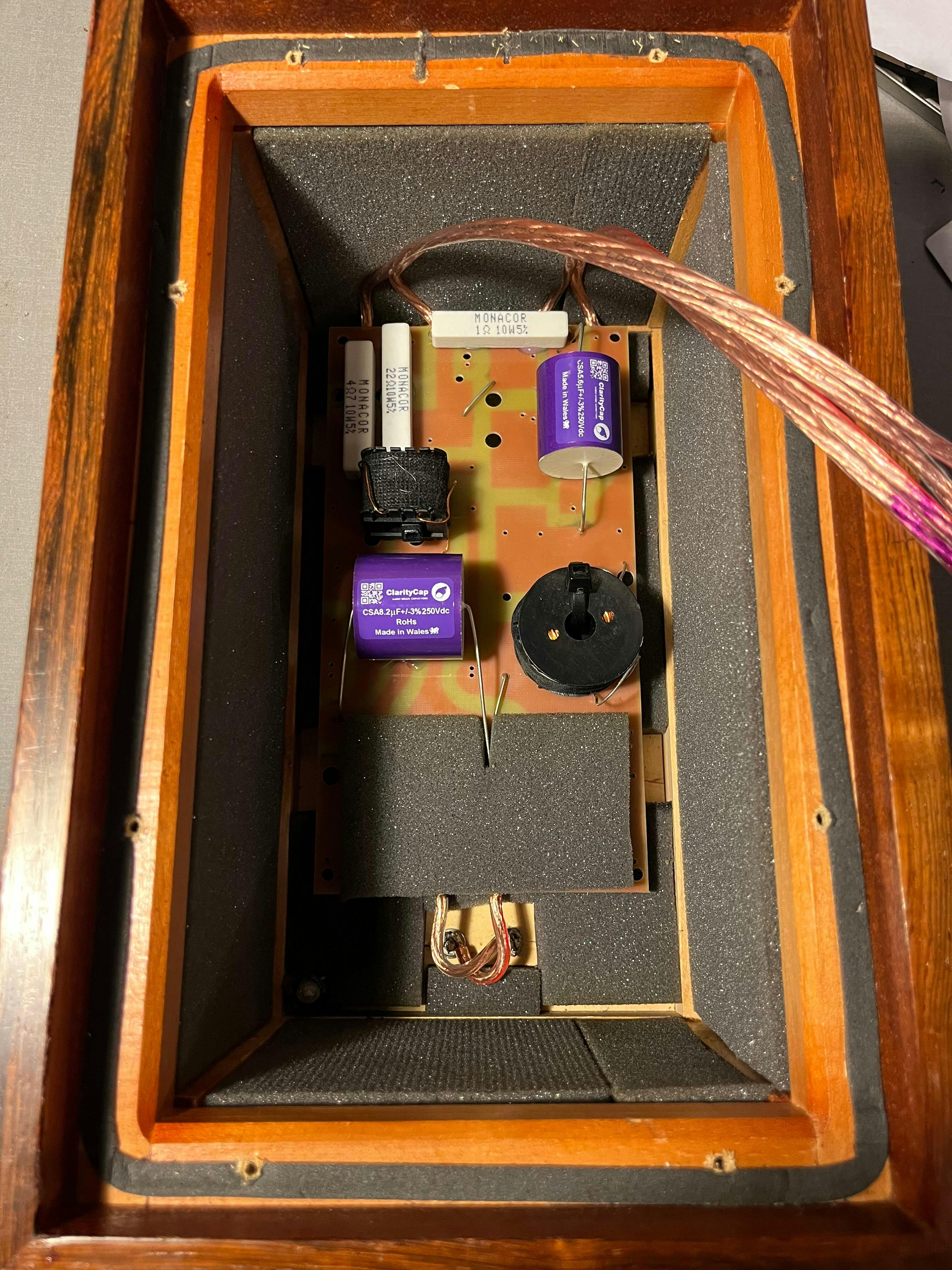

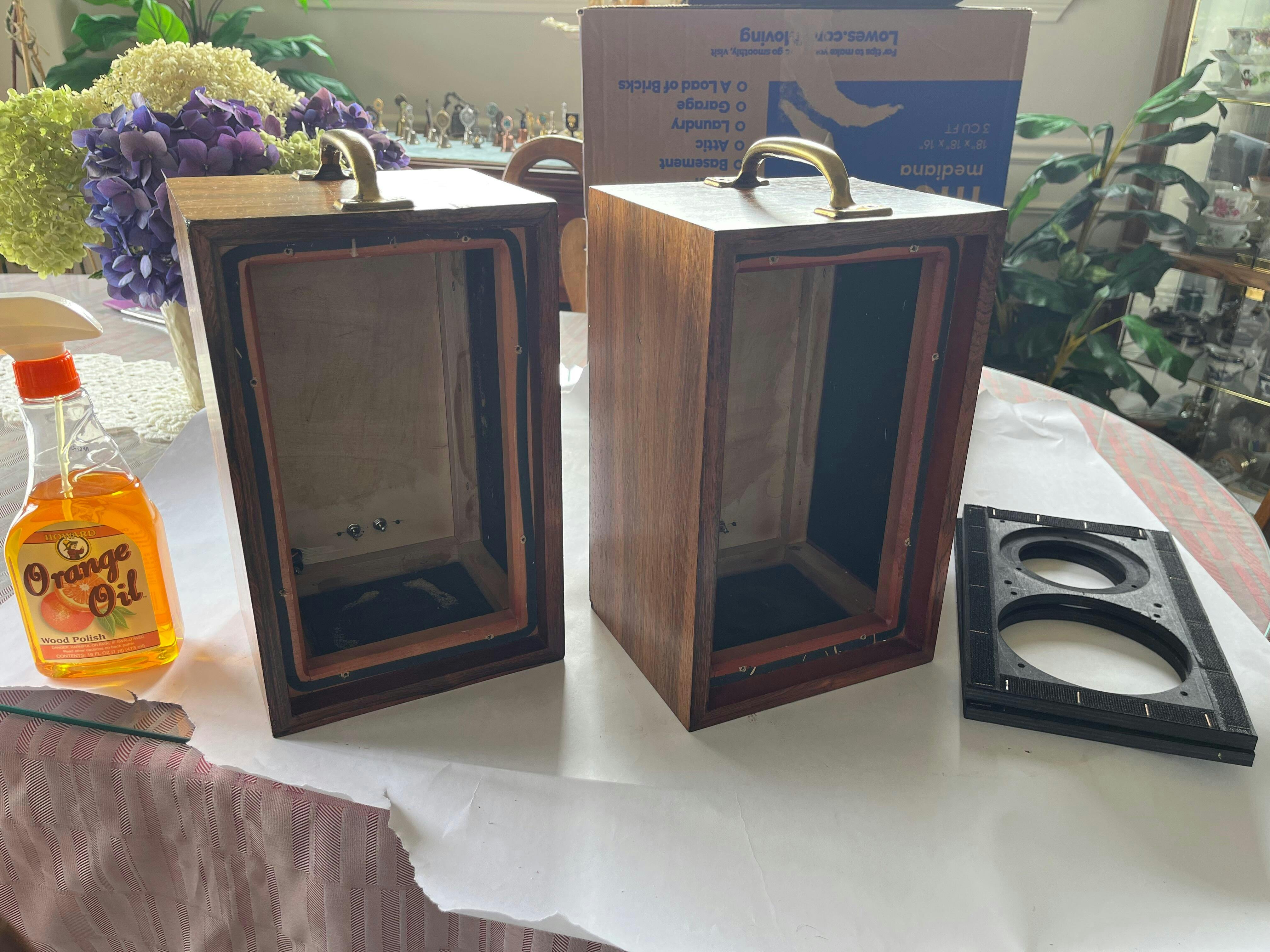

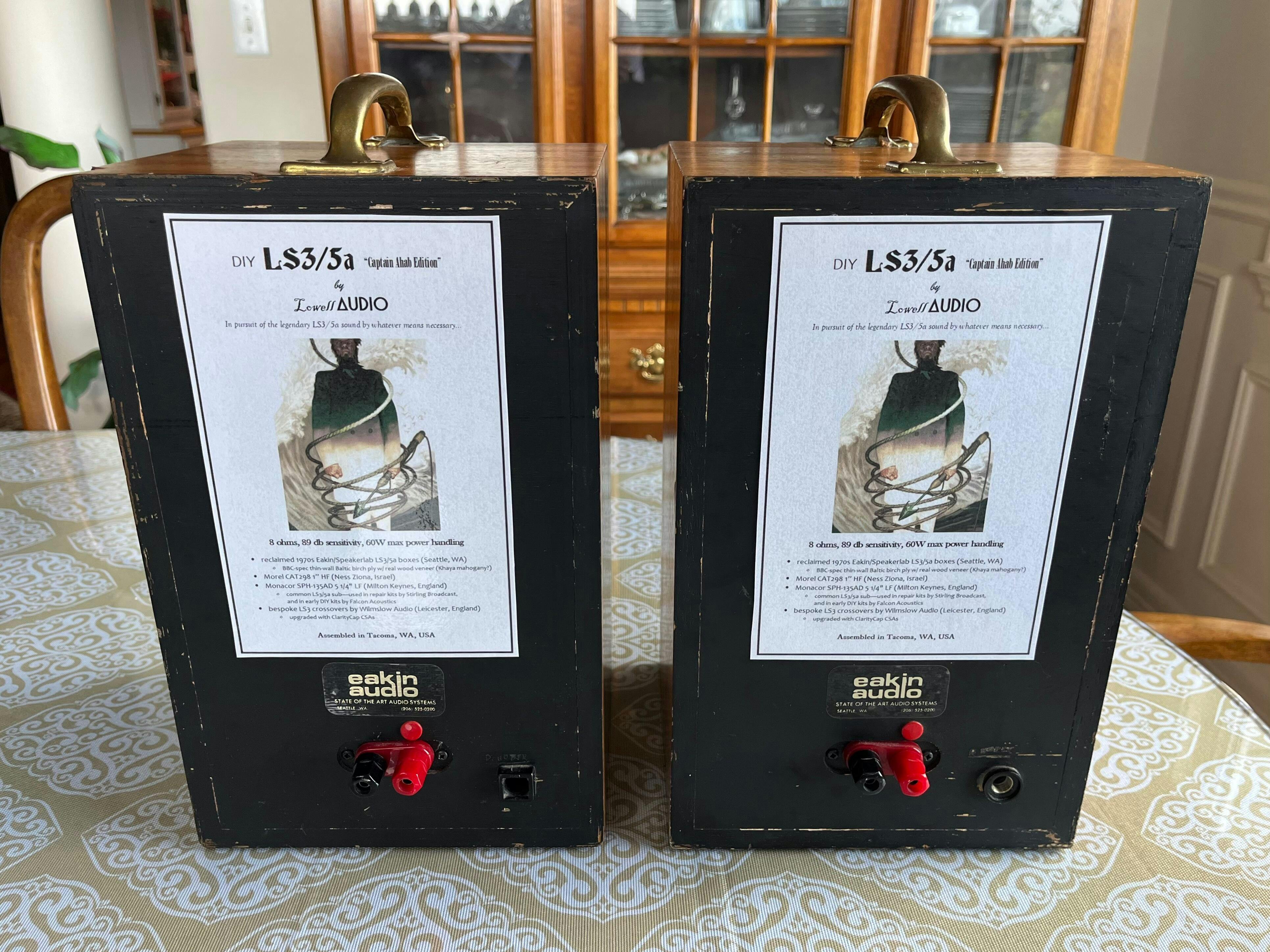

Used in a DIY LS3/5a project, with Morel CAT 298 tweeters and custom crossovers using ClarityCap CSAs. Super pleased with these woofers! I think they synergize well with the “live” thin-wall LS3/5a cabinets. The sound is neither bloated, nor thin, just revealing, spacious, and with very lifelike tone. I’m so happy with the results of this project and had a great buying experience with Willy’s. Thank you!!
Thanks for the review - that's a great looking project !
Will & Caroline
Friendly technical support
40+ years in the trade
UK family run business
Excellent customer service
Quick dispatch
thx you so much for helping me geting the twiters for my speakers i hope all good for your bisnis in the futur and that it will never close i recemed you to the norwigen hifikluben its a store in norway for parts and hifi so you brobely will get order from ther now thx agine for the parts btw you need to put a bit of fome on the back side of the speakers for it to mount in the b&w cmd1 se to make them fit i will leave som pictur of the istalsjon
I always knew that Linn should never have stopped using Hiquphon tweeters. What I don't know is why it's taken me thirty years to fit a pair in my old Kabers. It's often hard to describe sonic character ....but to pinch Linn's old line from back in the day ...they're Simply Better.(even straight out the box with soldering iron still warm)
As my Kabers are passive,I had been a little concerned that the the 8 ohm nominal impedence of the OW1 would mess with the crossover slope. I needn't have worried....if its shifted the crossover point its much for the better.
Warm thanks also to Will and Caroline for a service in keeping with the outstanding quality of the Hiquphon product.
Alan
Been looking for a supplier of replacement drivers for some years.
Willy's HiFi had just the parts at a good price and they arrived in a couple of days.
Excellent service. Even a personal thank you hand written on the invoice.
A quick delivery and the tweeters are perfect on my mission 753 freedom speakers. Easy to fit . Highly recommend.
