Morel CAT 328-110

Morel CAT 328-110 Tweeter

Classic Advanced Tweeter, 8 Ohms.

110mm faceplate version

Morel Logo

UK STOCK ITEM

The Morel CAT 328-110 is a modern updated version of the legendary MDT-32S with a 110mm faceplate. Featuring a field replaceable 28mm Acuflex textile dome, a large ferrofluid cooled Hexatech aluminium voice coil, a vented ferrite magnet system and a critically tuned / damped rear chamber, this tweeter is remarkably transparent and is a very good performer at this price point. Recommended frequency use: 2000-20,000 Hz. Substantial power rating of 200w nominal, 1000w peak.

A full datasheet can be downloaded from the bottom of this page.

Key Features:

    • 110mm IDR™ Aluminium face plate
    • 28mm Acuflex™ replaceable dome / coil assembly
    • Large 2 layer Hexatech™ aluminum voice coil
    • Vented ferrite magnet system
    • Ferro fluid cooling
    • High power handling

    Basic parameters:

    Resonant frequency (fs) 650 Hz Nominal impedance (Zn) 8 Ω
    Effective diaphragm diameter 28mm DC resistance (Re) 5.2 Ω
    Ferrofluid ? Y/N Yes RMS power handling 200W
    Recommended crossover 2khz Faceplate diameter 110mm
    Sensitivity (2.83V/1m) 90 dB Cutout hole diameter 72 mm

    Here's the full datasheet:

    .pdf icon

    CAT328

    Customer Reviews

    Based on 1 review
    100%
    (1)
    0%
    (0)
    0%
    (0)
    0%
    (0)
    0%
    (0)
    G
    Gary Sandison
    Morel CAT 328-110 Tweeter

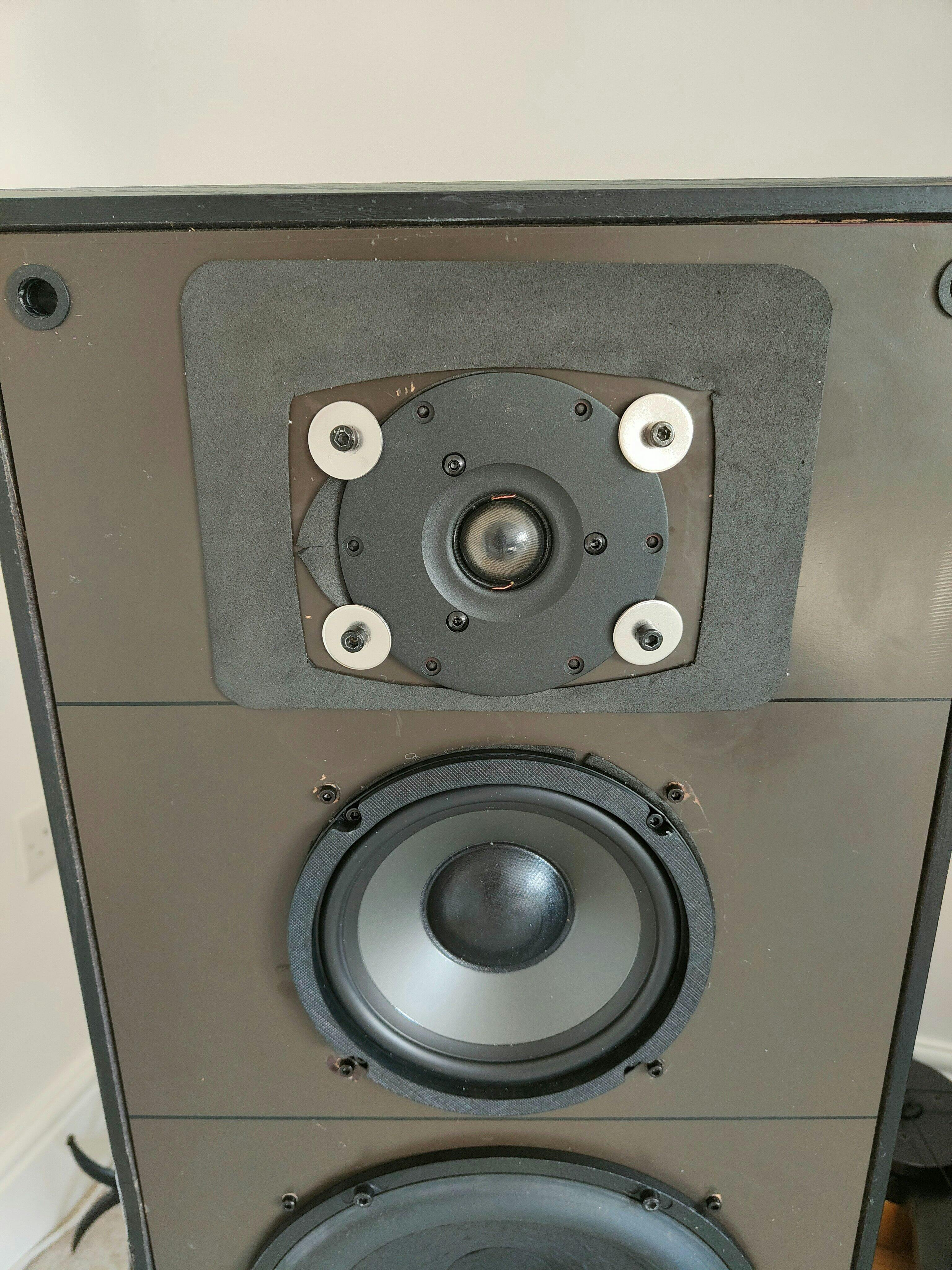

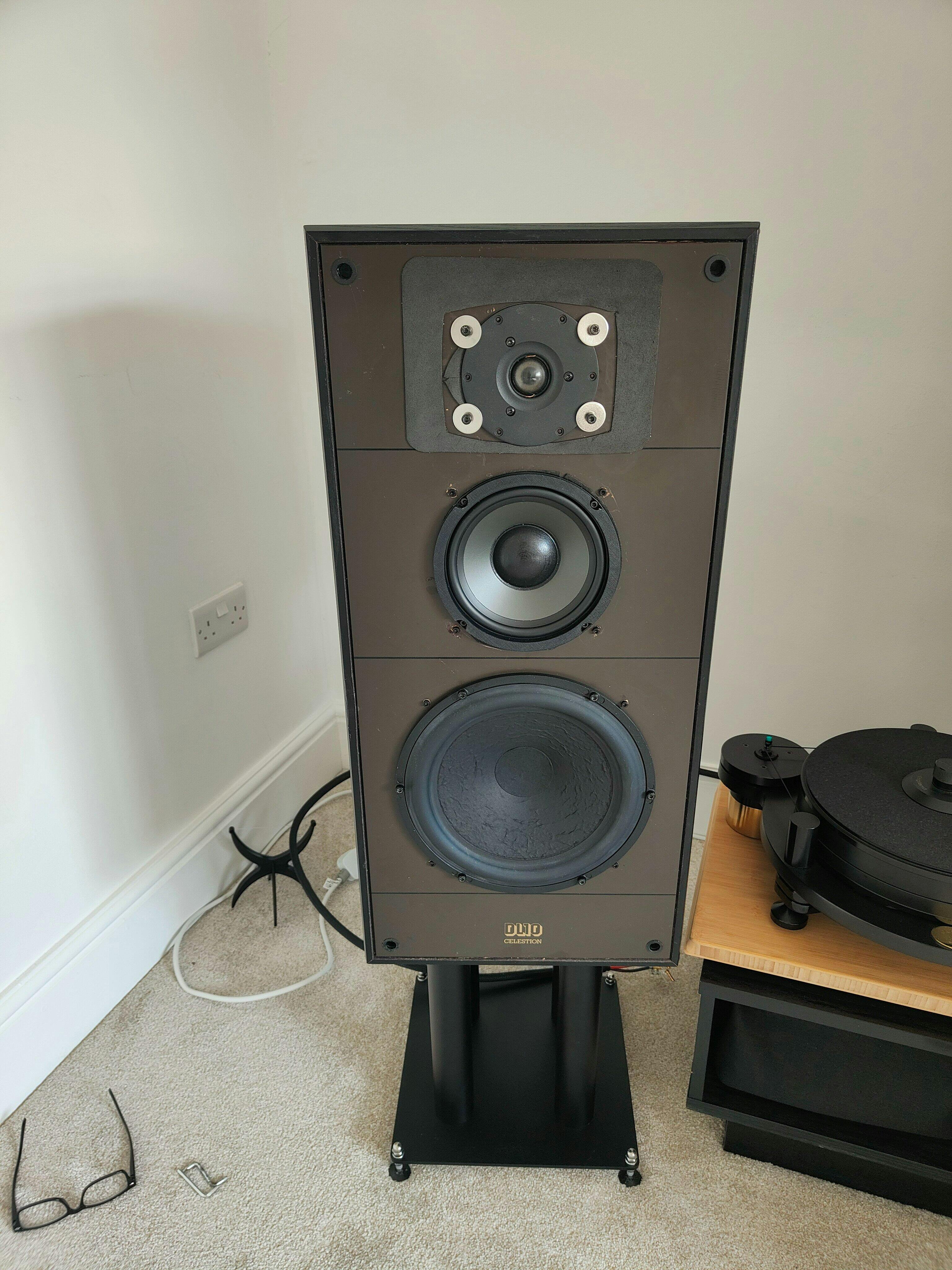

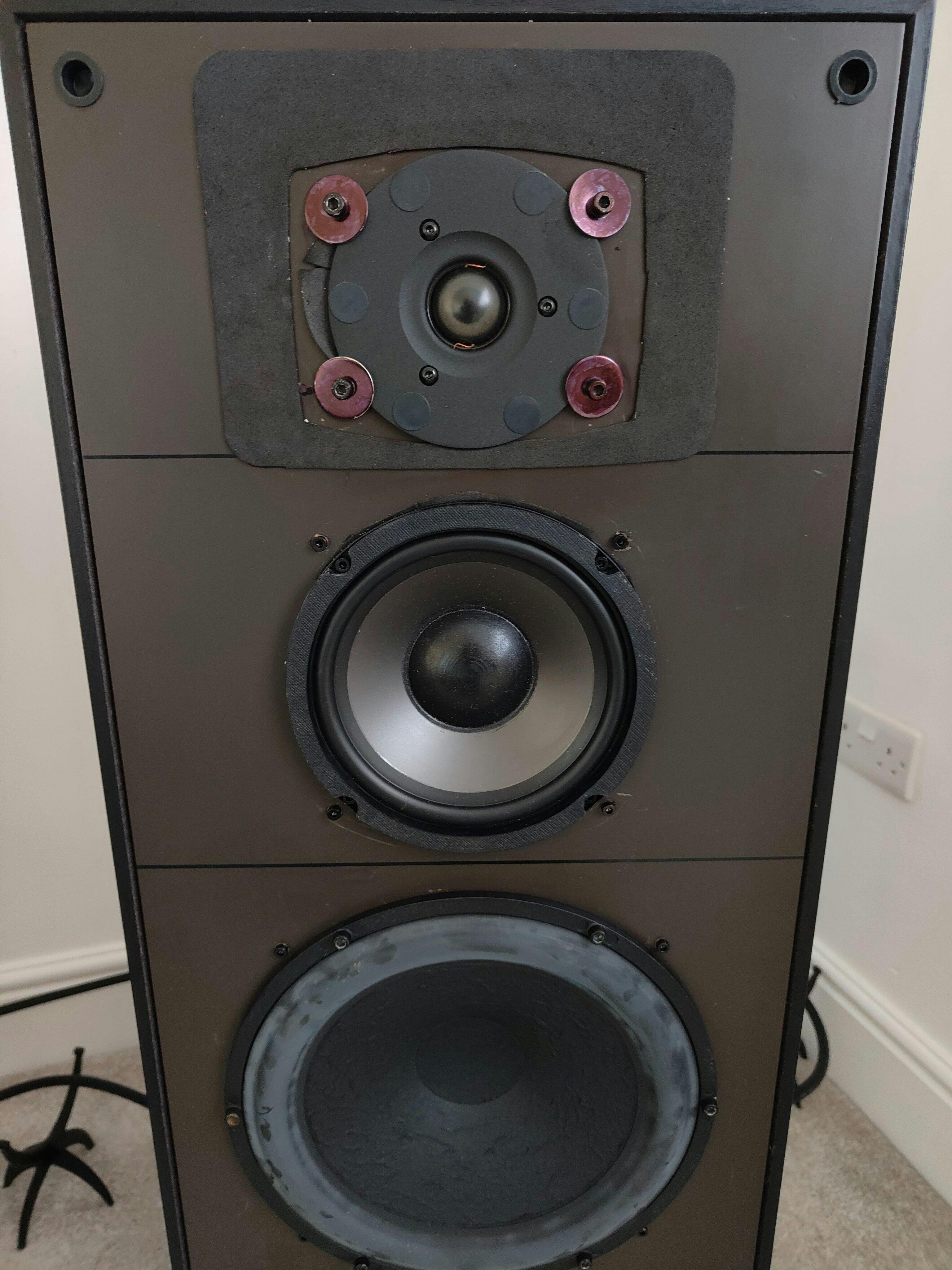

    Absolutely first class service again brilliant advice as i always get from Will. Bought some Morel CAT 328-110 Tweeters and they sound sublime and the detail is incredible. Not harsh at all and very airy performs well beyond its price point im so glad Will advised me on this as the perfomance is fantastic. In fact Will has saved me thousands as replacing drivers has saved me investing in new speakers first class service once again.

    Very happy customer thansk again.

    Thanks for the review Gary !
    Will & Caroline
