MDT12

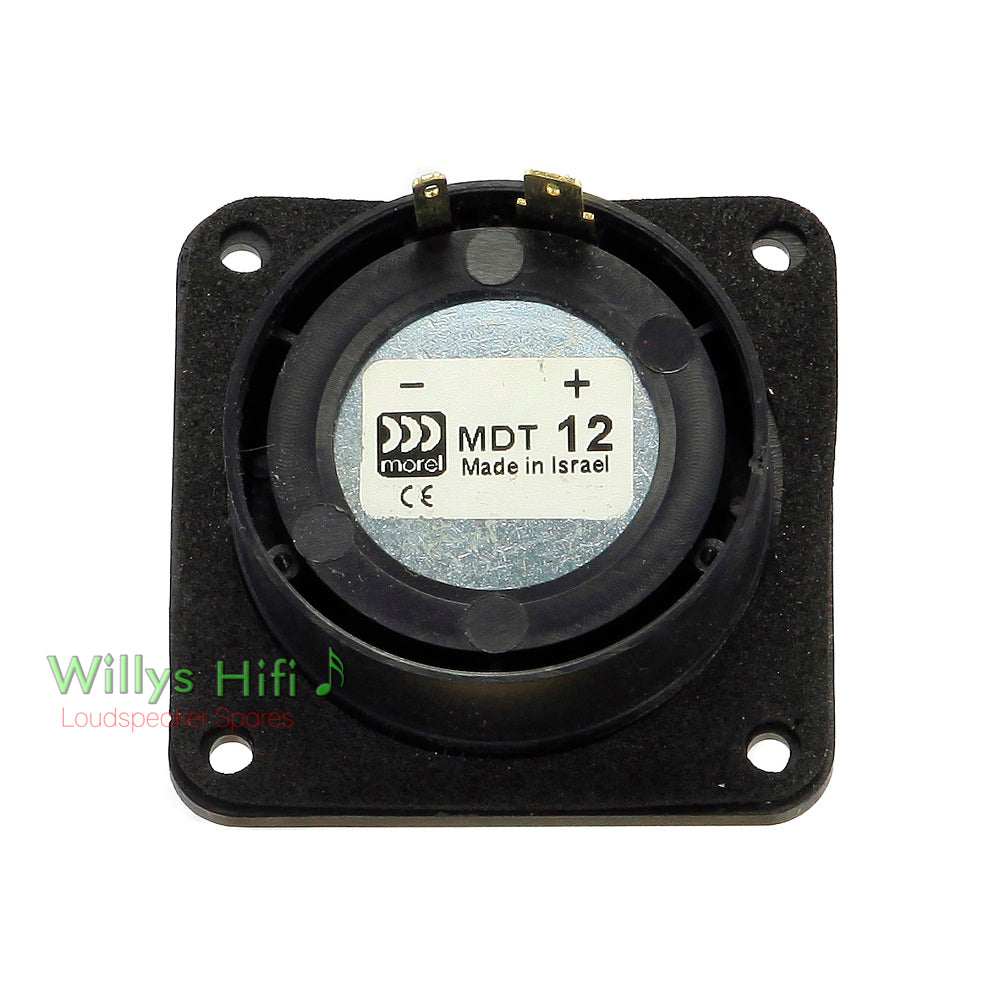

Morel MDT12 Soft Dome Tweeter

Reissued new stock Morel MDT12 !

Morel Logo

UK STOCK ITEM

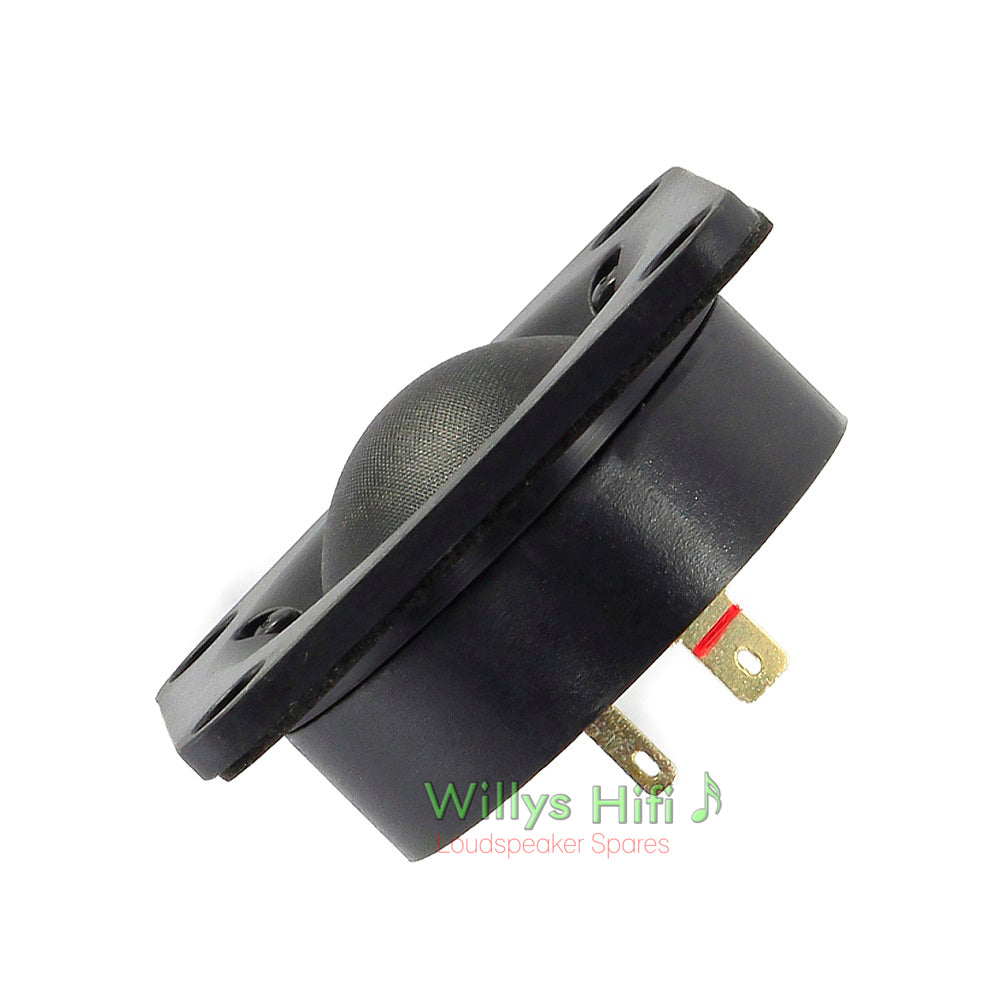

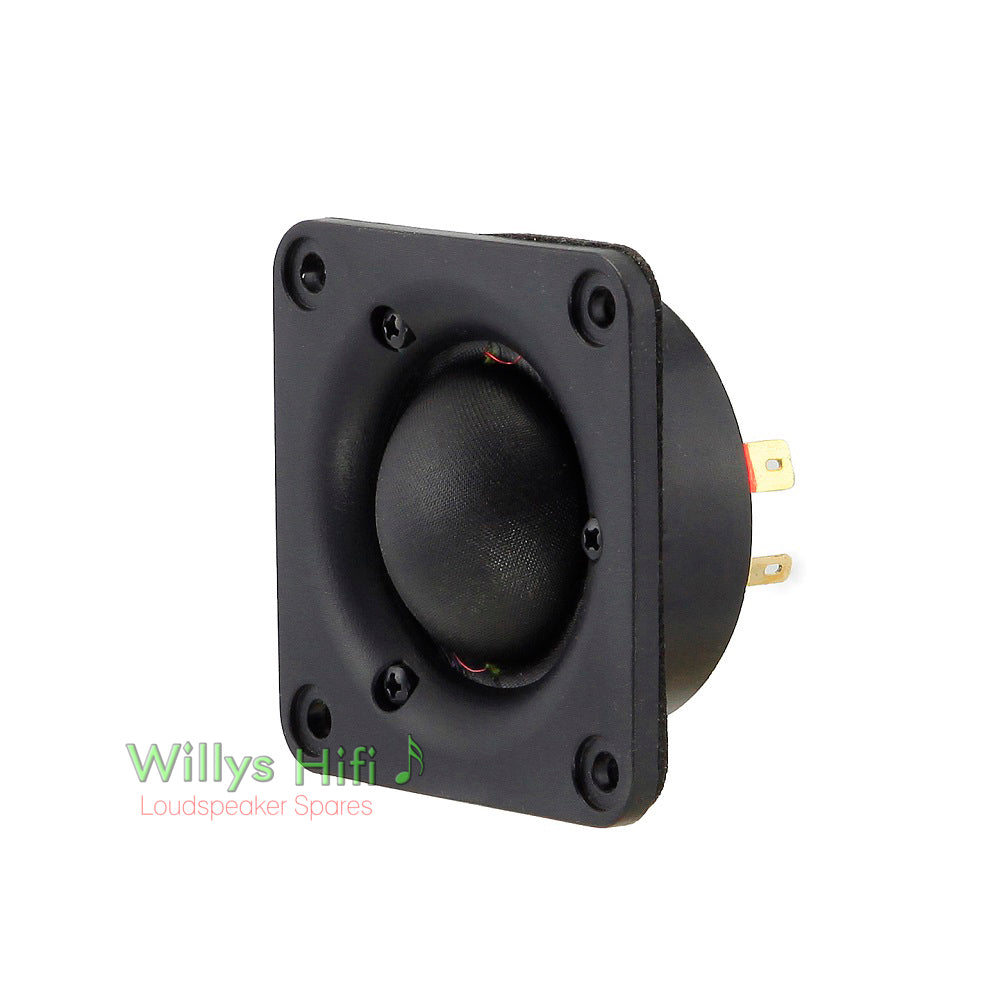

The Morel MDT12 features a hand coated soft textile dome, 28mm copper voice coil and a vented neodymium magnet assembly.

This classic series tweeter can be mounted very close to other drive units due to it's compact dimensions making it ideal for high performance MTM / D'Appolito  configurations.

A full datasheet can be downloaded from the bottom of this page.

Key Features:

    • Compact 54mm square face plate
    • 28mm hand coated soft dome
    • Ferrofluid cooled copper voice coil
    • Neodymium magnet assembly
    • Gold plated input tags

    Basic parameters:

    Resonant frequency (fs) 1000Hz Nominal impedance (Zn) 8 Ω
    Effective diaphragm diameter 28mm DC resistance (Re) 5.2 Ω
    Ferrofluid ? Y/N Yes RMS power handling 80W
    Recommended crossover 3 kHz / 12dB Faceplate (square) 54 mm
    Sensitivity (2.83V/1m) 89dB Cutout hole diameter 44 mm

    Here's the full datasheet:
