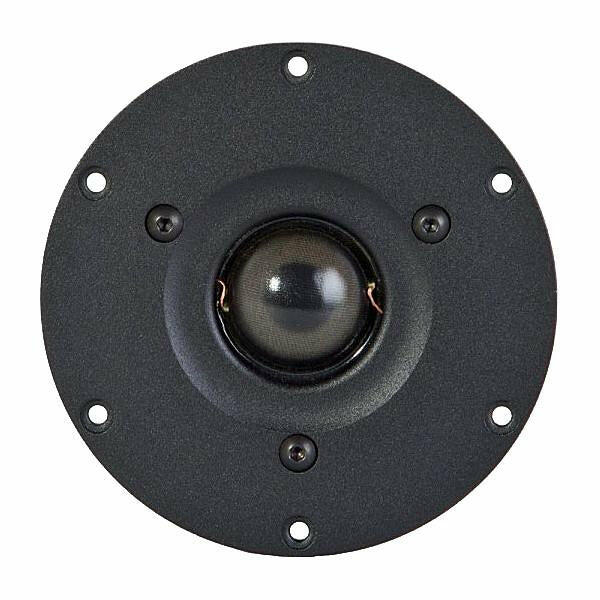

Morel CAT 328-104 Tweeter

Morel CAT 328-104 Tweeter

Classic Advanced Tweeter, 8 Ohms.

104mm faceplate version

Morel Logo

The Morel CAT 328-104 is a modern updated version of the legendary MDT-32S with a 104mm faceplate. Featuring a field replaceable 28mm Acuflex textile dome, a large ferrofluid cooled Hexatech aluminium voice coil, a vented ferrite magnet system and a critically tuned / damped rear chamber, this tweeter is remarkably transparent and is a very good performer at this price point. Recommended frequency use: 2000-20,000 Hz. Substantial power rating of 200w nominal, 1000w peak.

A full datasheet can be downloaded from the bottom of this page.

Key Features:

    • 104mm IDR™ Aluminium face plate
    • 28mm Acuflex™ replaceable dome / coil assembly
    • Large 2 layer Hexatech™ aluminum voice coil
    • Vented ferrite magnet system
    • Ferro fluid cooling
    • High power handling

    Basic parameters:

    Resonant frequency (fs) 650 Hz Nominal impedance (Zn) 8 Ω
    Effective diaphragm diameter 28mm DC resistance (Re) 5.2 Ω
    Ferrofluid ? Y/N Yes RMS power handling 200W
    Recommended crossover 2khz Faceplate diameter 104mm
    Sensitivity (2.83V/1m) 90 dB Cutout hole diameter 72 mm

    Here's the full datasheet:

    .pdf icon

    CAT328

    Customer Reviews

    Based on 1 review
    100%
    (1)
    0%
    (0)
    0%
    (0)
    0%
    (0)
    0%
    (0)
    C
    Cameron Stewart
    MOREL CAT-328-104

    The MOREL CAT-328 is the recessed plate version of the CAT-308. The primary advantage of the recessed plate is that it minimizes the mild horn loading coloration that the CAT-308 faceplate creates.

    There are two versions however: A 110 mm diameter version and a 104 mm version. The 104mm version takes up less front baffle space.

    The MOREL CAT-328 is a very rugged, high quality tweeter. It can be crossed over at 4KHz, 6dB per octave without burning out. It also has excellent dynamic response without compression and it sounds very detailed and airy.

    Thanks for the review - we agree, this is a great tweeter !

    Will & Caroline
