Morel CAT 328-110
110mm faceplate version
UK STOCK ITEM
The Morel CAT 328-110 is a modern updated version of the legendary MDT-32S with a 110mm faceplate. Featuring a field replaceable 28mm Acuflex textile dome, a large ferrofluid cooled Hexatech aluminium voice coil, a vented ferrite magnet system and a critically tuned / damped rear chamber, this tweeter is remarkably transparent and is a very good performer at this price point. Recommended frequency use: 2000-20,000 Hz. Substantial power rating of 200w nominal, 1000w peak.
A full datasheet can be downloaded from the bottom of this page.
| Resonant frequency (fs) | 650 Hz | Nominal impedance (Zn) | 8 Ω |
| Effective diaphragm diameter | 28mm | DC resistance (Re) | 5.2 Ω |
| Ferrofluid ? Y/N | Yes | RMS power handling | 200W |
| Recommended crossover | 2khz | Faceplate diameter | 110mm |
| Sensitivity (2.83V/1m) | 90 dB | Cutout hole diameter | 72 mm |
CAT328

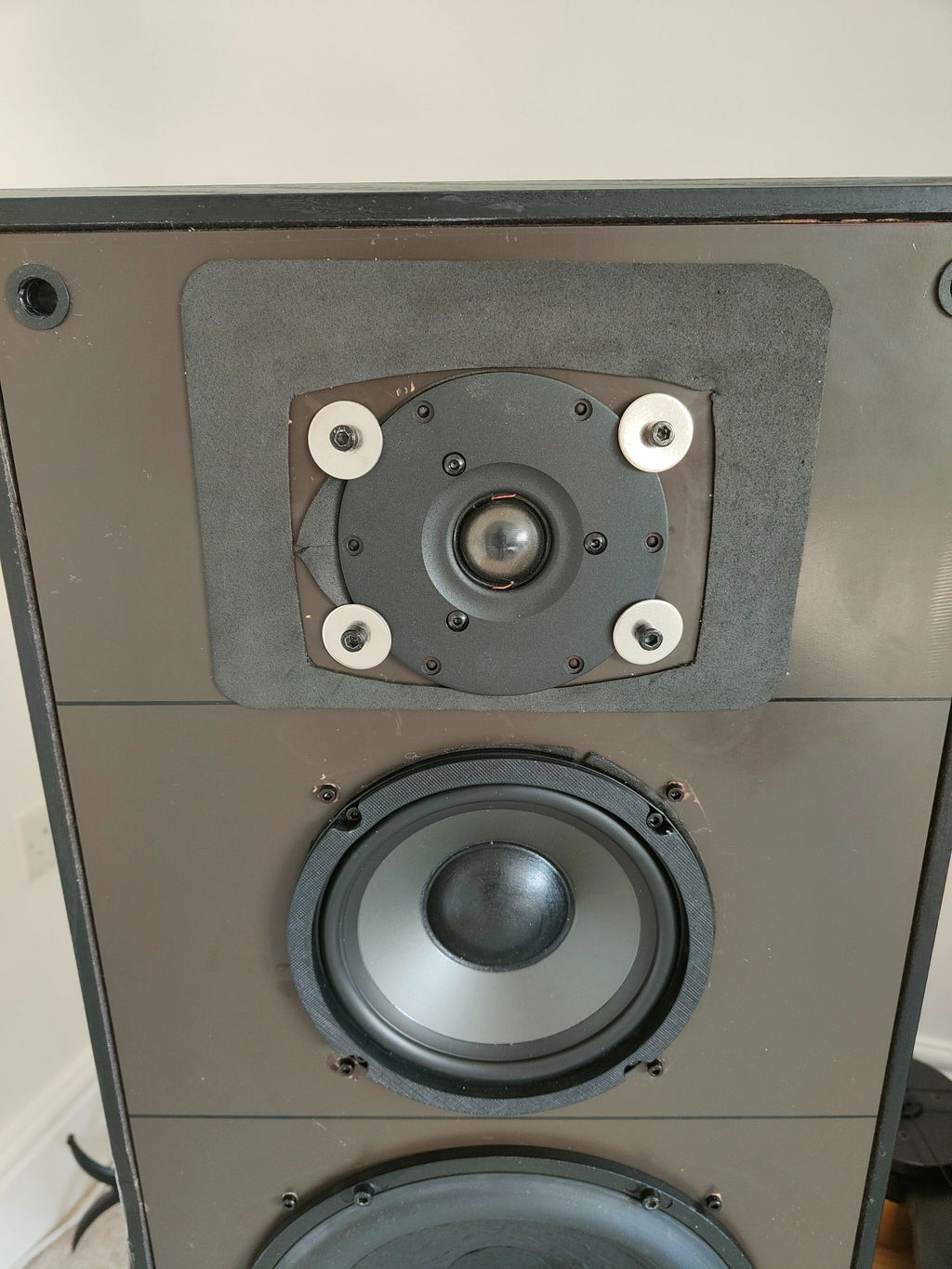

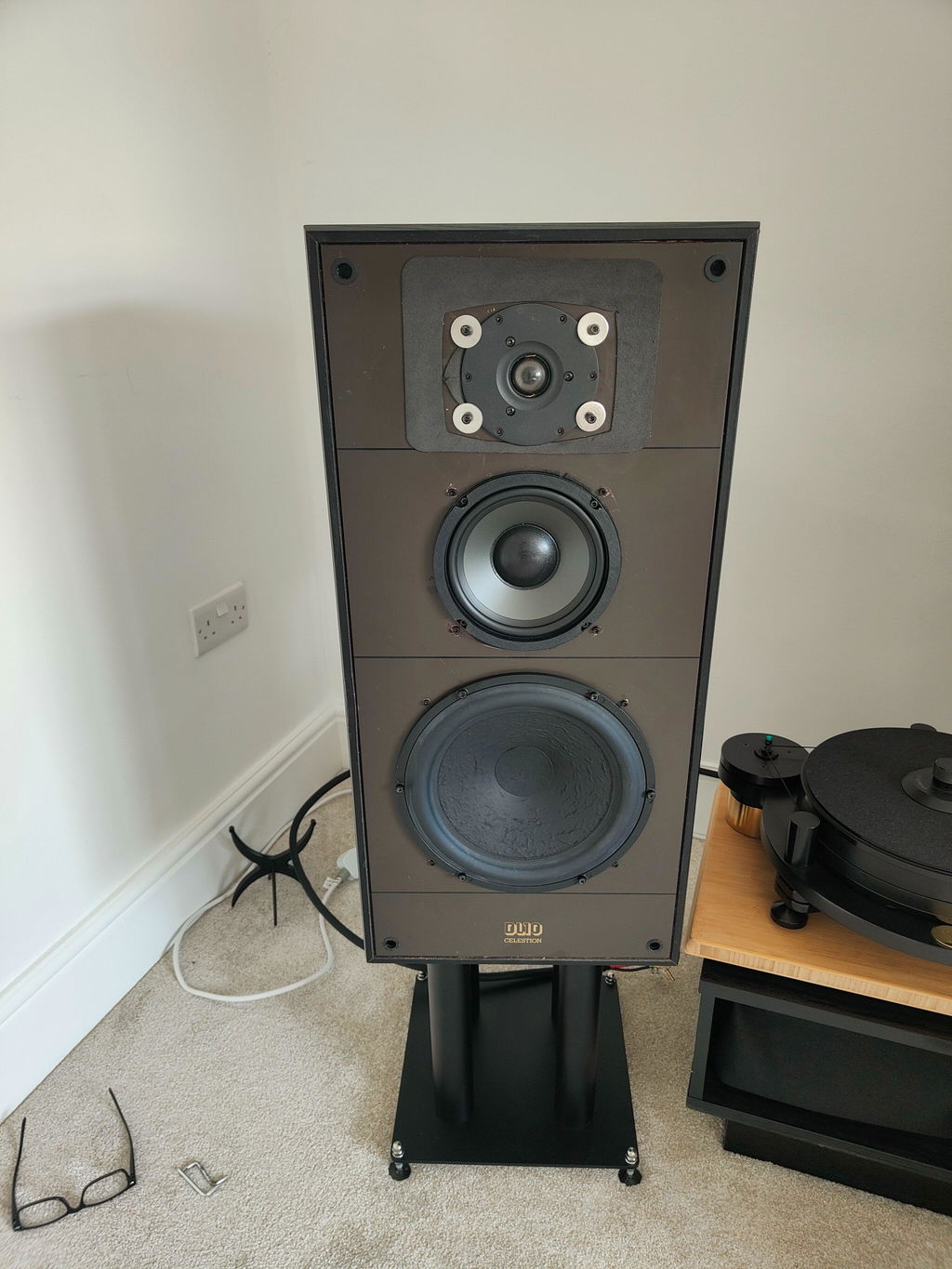

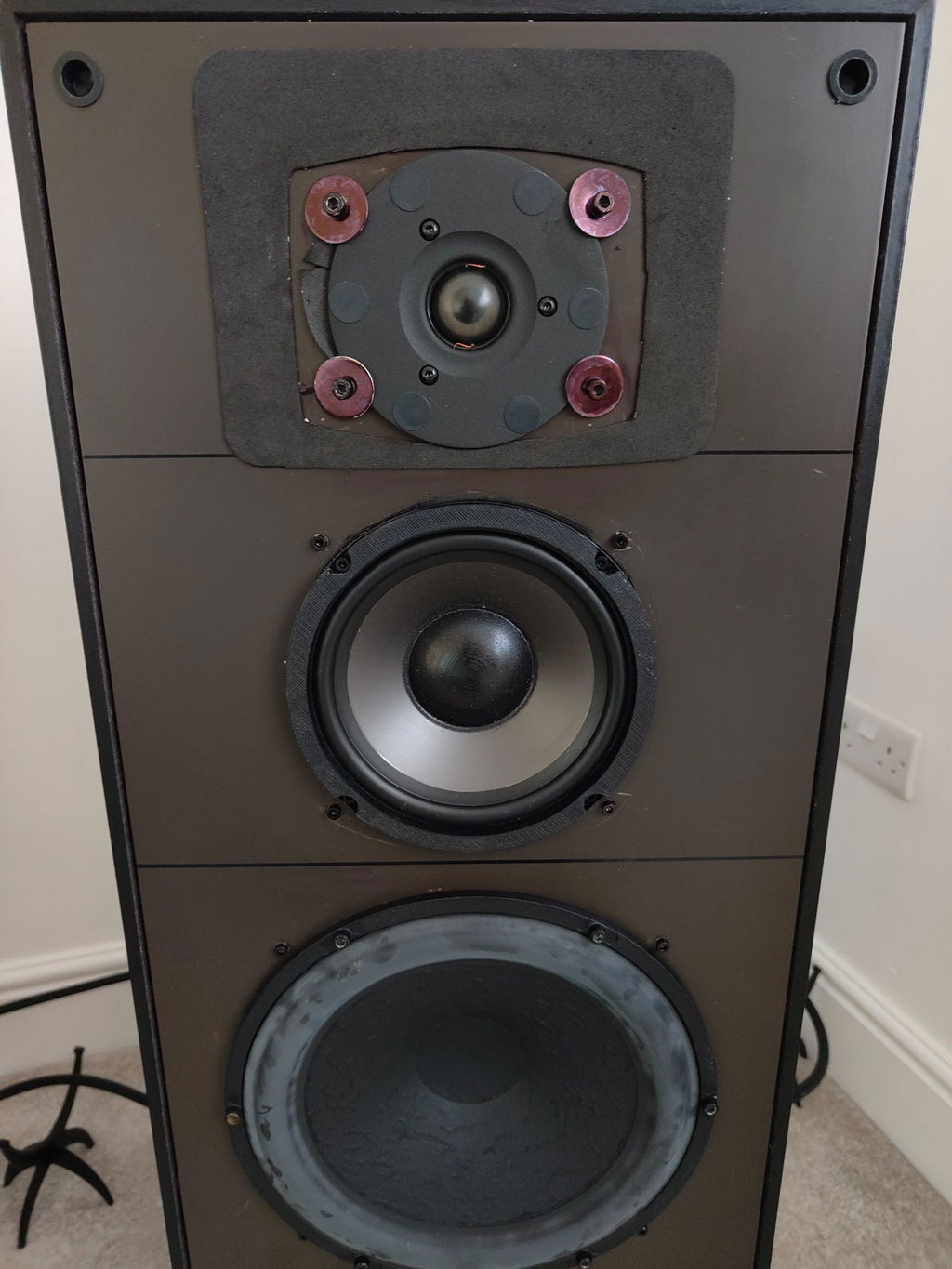

Absolutely first class service again brilliant advice as i always get from Will. Bought some Morel CAT 328-110 Tweeters and they sound sublime and the detail is incredible. Not harsh at all and very airy performs well beyond its price point im so glad Will advised me on this as the perfomance is fantastic. In fact Will has saved me thousands as replacing drivers has saved me investing in new speakers first class service once again.
Very happy customer thansk again.
Thanks for the review Gary !
Will & Caroline
