C51-6-286

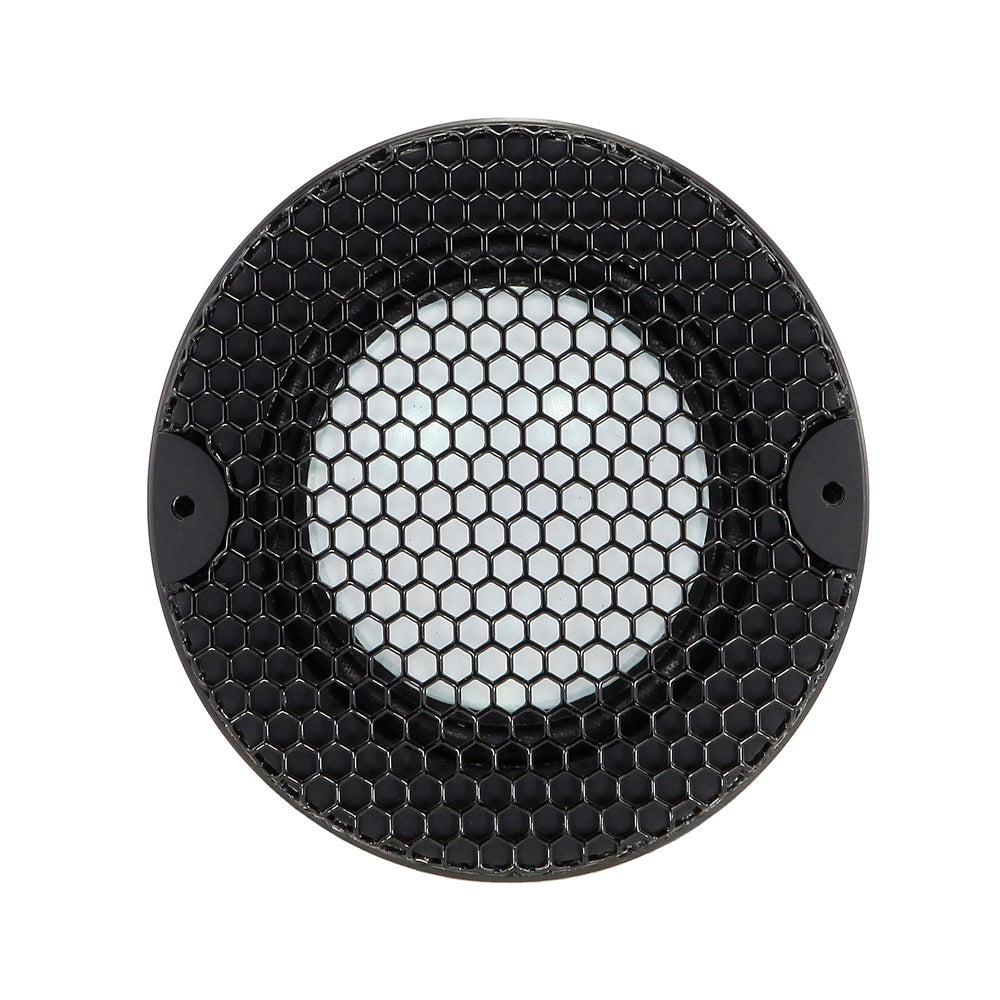

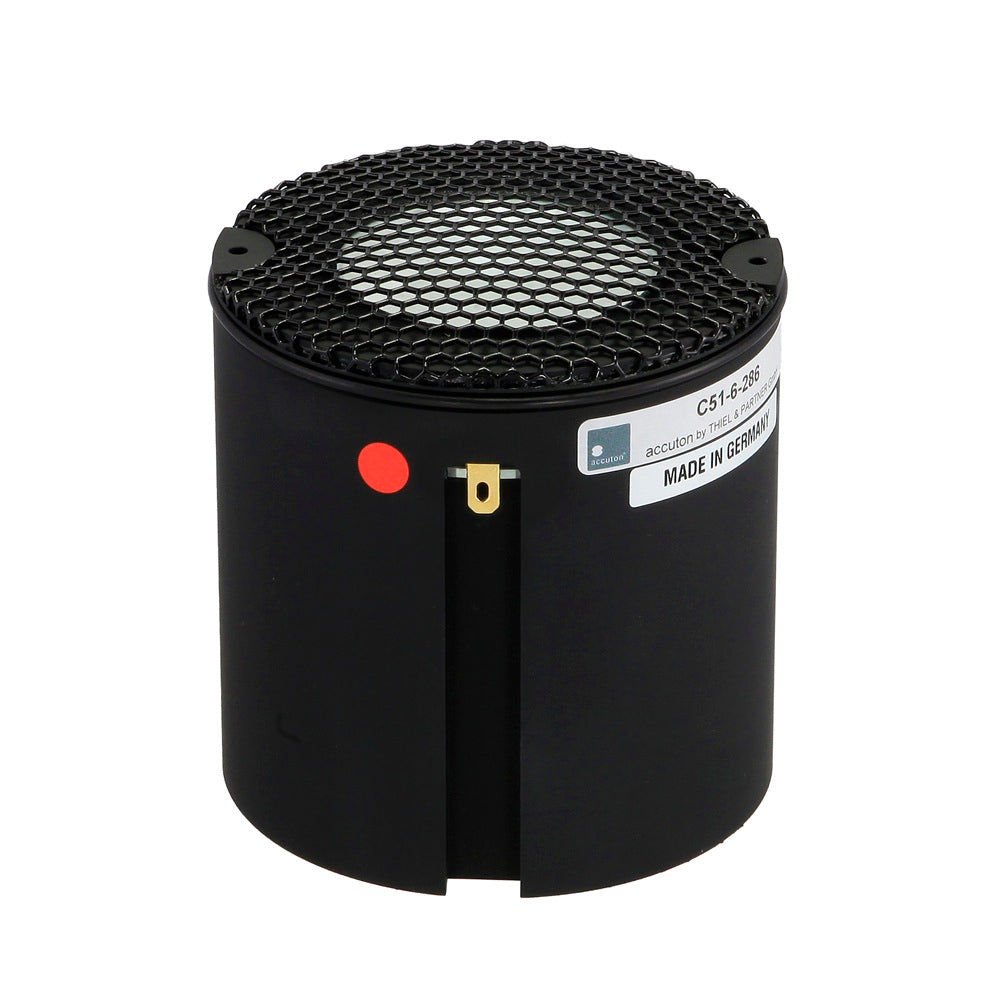

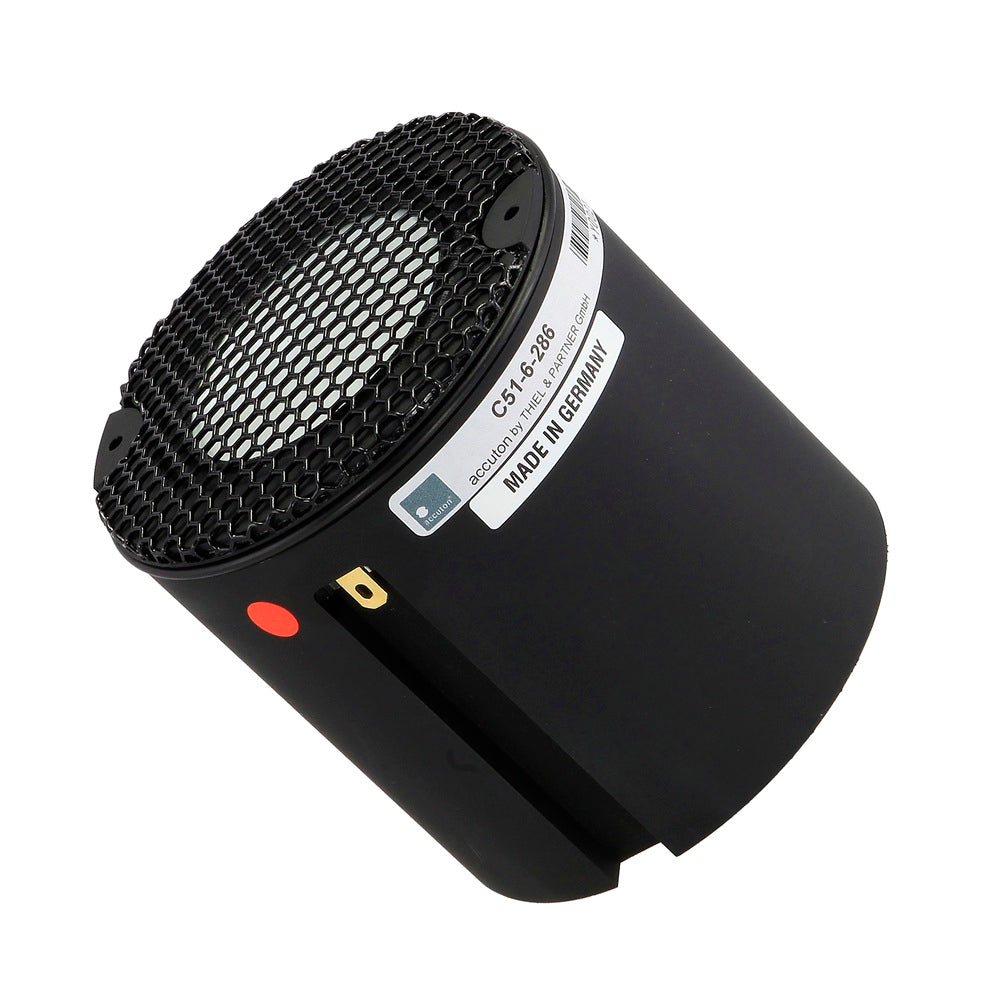

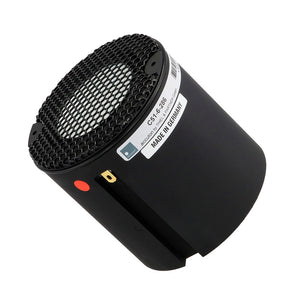

Accuton C51-6-286 Ceramic Dome Midrange

Accuton C51-6-286 Ceramic Dome Midrange - Cell Concept.

Accuton logo

UK STOCK ITEM !

Features include: ultra hard 51mm ceramic dome, 86mm Cell Concept body, discrete clamping system for secure mounting to baffles. The dome breakup mode is above audibility and well damped. A unique FEA optimised underhung motor design with vented titanium voice coil former and double neodymium magnet guarantees low energy storage, excellent heat transfer and high excursion capability for low power compression and ultra low distortion. The new design soft fabric suspension centers the moving parts with improved linearity.

The C51-6-286 is an esoteric, high end midrange drive unit : 800 Hz - 6Khz.

Key Features:

  • Ultra hard 51mm (2") ceramic dome (Corundum / Sapphire)
  • Cell Concept 86mm cylindrical body
  • Vented pole piece, Titanium voice coil former
  • Dome resonance well above audibility
  • Underhung motor, no ferrofluid
  • Double Neodymium magnet system

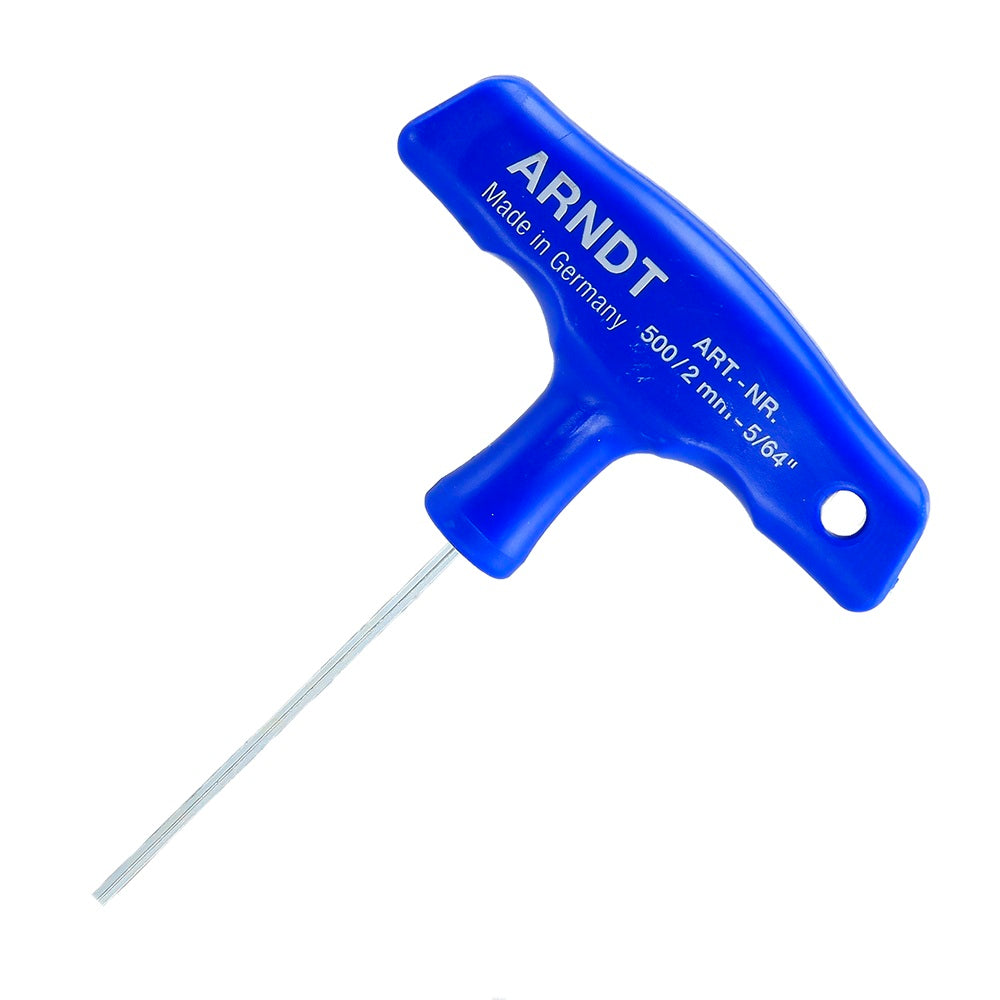

  • Supplied with high quality hex tool for mounting

Basic Parameters:

    Resonant frequency (fs) 581 Hz DC resistance (Re) 5.6 Ω
    Effective dome diameter 51mm Power handling 120W
    Ferrofluid ? Y/N No Faceplate diameter 86mm
    Recommended crossover 800Hz< Overall depth 87mm
    Sensitivity (2.83V/1m) 93dB Cutout diameter 86mm



    Here's the full datasheet :
