XO3W-625/5K

Dayton Audio XO3W-625/5K Speaker Crossover Network - 3 Way 625/5kHz.

Dayton Audio Logo

XO3W-625/5K, 3 Way Crossover 625/5000 Hz.

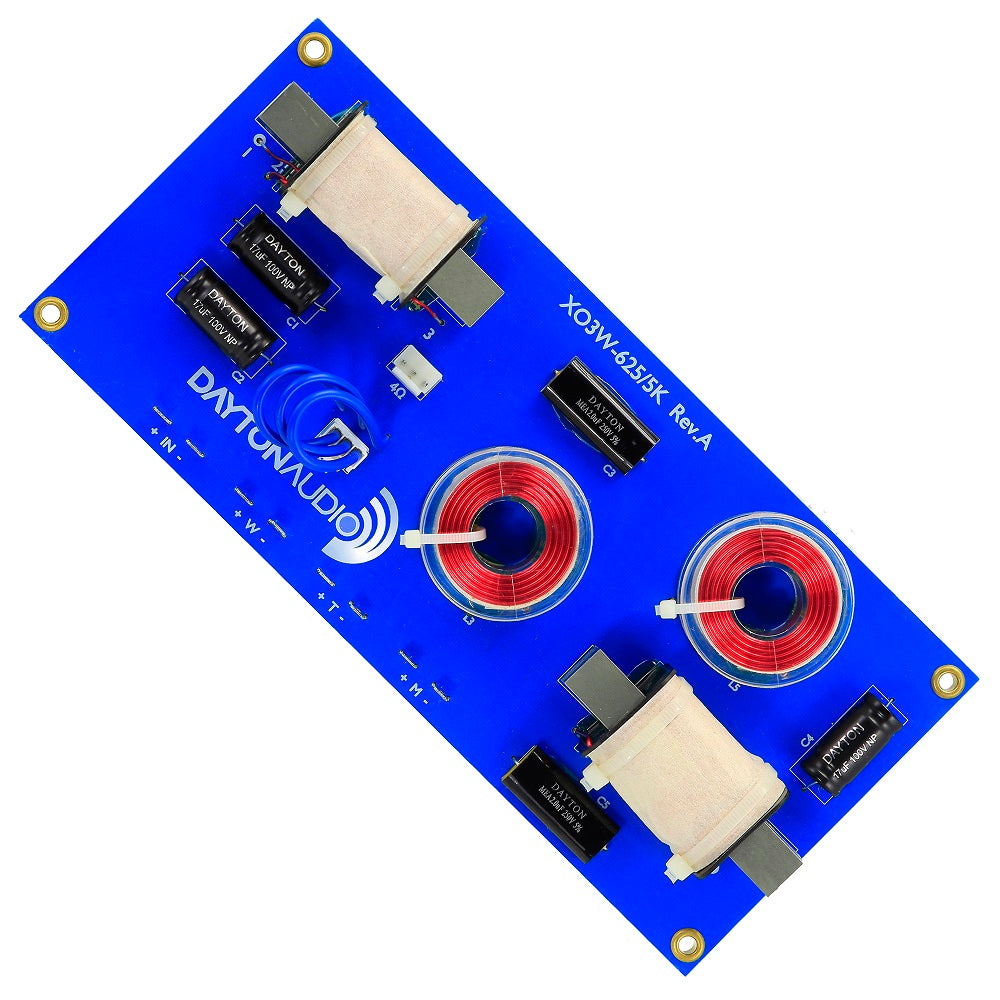

Ready built 3 way loudspeaker crossover featuring an OFC high current laminated bar core inductor in the low pass section, air core + laminated bar core inductors in the midrange section and air core + metal film capacitors in the treble section - all components are bonded to the PCB to eliminate possible rattles.

This crossover has a second order (12dB/octave) rolloff with a 3 octave spread between the crossover points. The bass section can be configured for 4 or 8 ohm woofers by simply moving a plug. The treble and midrange sections are designed for 8 ohm drive units. Designed for a domestic environment and has a power rating of 300W.

Connections are by 4.8mm faston / spade push connectors (available here: 4.8mm connectors) . Easy to surface mount inside the loudspeaker enclosure, does not need standoffs.

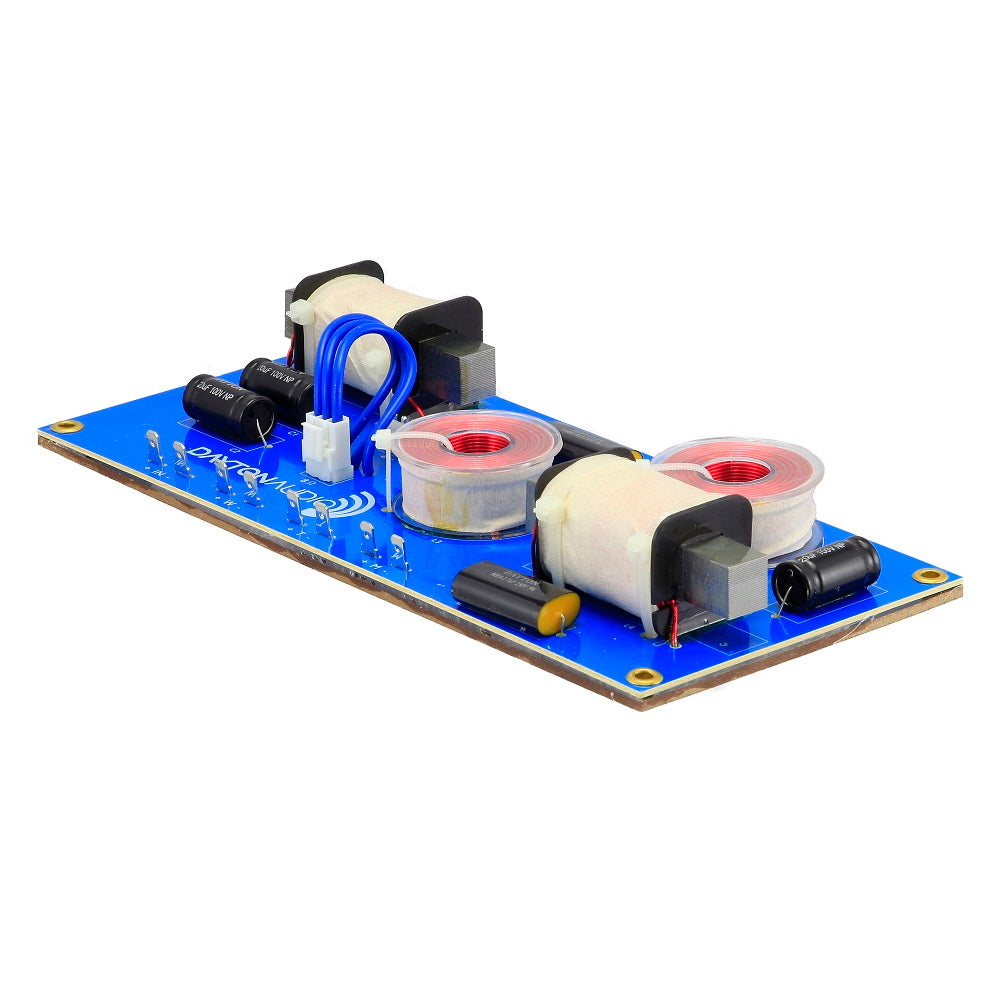

With a rugged 1.75mm glassfibre PCB bonded to a 4mm MDF backboard this is a very well made crossover representing excellent value for money.

Size: 250 x 115 x 40mm approx.
