P830667 SLS-213

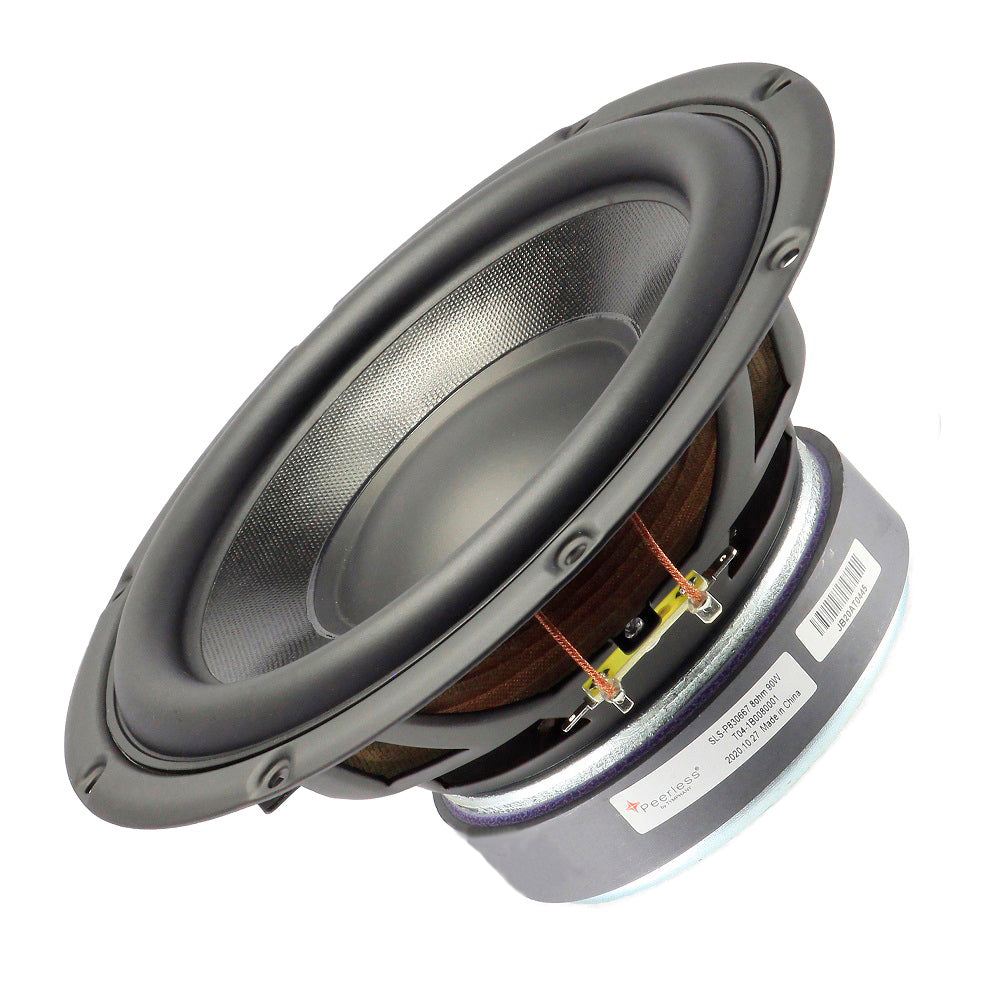

Peerless P830667 SLS-213 8" Woofer

Peerless logo

UK STOCK ITEM

The Peerless P830667 SLS-213 is an 8 inch 8 ohm woofer / bass driver from the highly regarded SLS series featuring a coated hard paper cone, a fully ventilated steel chassis, a Faraday shorting ring in the motor system and long throw suspension. High Qts design specifically for strong bass reproduction; suits sealed box 3 way systems or subwoofers. Some care needs to be taken with reflex designs.

Key Features:

  • Coated hard paper pulp cone
  • Aluminium shorting / Faraday ring
  • Long throw design with rubber surround
  • Fully vented pressed steel chassis
  • High Qts design

Basic parameters:

Resonant frequency (fs) 46 Hz Nominal impedance (Zn) 8 Ω
Mechanical  Q factor (Qms) 7.21
DC resistance (Re) 5.6 Ω
Electrical Q factor (Qes) 0.83
Max power handling 90 W
Total Q factor (Qts) 0.73
Sensitivity (2.83V/1m)
86.5dB
Equivalent volume (Vas) 19L Chassis diameter
213mm

Here's the full datasheet:

.pdf link
